SSF8N60

600V N-Channel MOSFET

SSF8N60 Features

* Extremely high dv/dt capability

* Low Gate Charge Qg results in Simple Drive Requirement

* 100% avalanche tested

* Gate charge minimized

* Very low intrinsic capacitances

* Very good manufacturing repeatability

* Lead free product DESCRIPTION The SSF8N60 is a new genera

SSF8N60 General Description

The SSF8N60 is a new generation of high voltage N

*Channel enhancement mode power MOSFETs and is obtained through an extreme optimization layout design, in additional to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability, provide superior sw.

SSF8N60 Datasheet (1.12 MB)

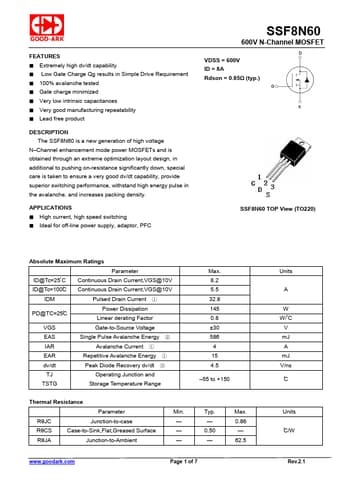

Preview of SSF8N60 PDF

Datasheet Details

Part number:

SSF8N60

Manufacturer:

GOOD-ARK

File Size:

1.12 MB

Description:

600v n-channel mosfet.
