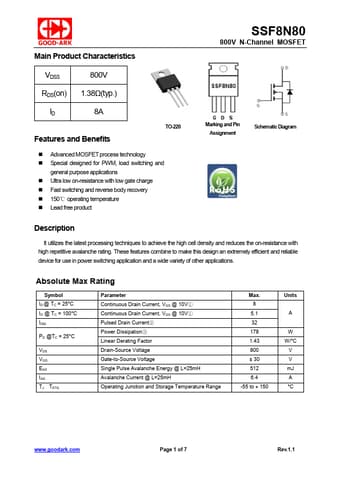

Part number:
SSF8N80
Manufacturer:
GOOD-ARK
File Size:
1.15 MB
Description:
800v n-channel mosfet.
* TO-220
* Advanced MOSFET process technology
* Special designed for PWM, load switching and general purpose applications
* Ultra low on-resistance with low gate charge
* Fast switching and reverse body recovery
* 150℃ operating temperature
* Lead free product SSF8N80 800V N
SSF8N80
GOOD-ARK
1.15 MB
800v n-channel mosfet.
