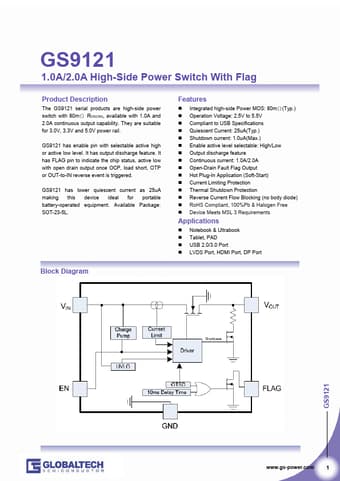

Part number:
GS9121
Manufacturer:
Globaltech
File Size:
311.68 KB
Description:
1.0a/2.0a high-side power switch.
* Integrated high-side Power MOS: 80mΩ(Typ.)
* Operation Voltage: 2.5V to 5.5V
* Compliant to USB Specifications
* Quiescent Current: 25uA(Typ.)
* Shutdown current: 1.0uA(Max.)
* Enable active level selectable: High/Low
* Output discharge feature
* Continuous current:
GS9121
Globaltech
311.68 KB
1.0a/2.0a high-side power switch.
