2SD2099 - NPN Epitaxial Planar Silicon Transistor

Datasheet Summary

Features

  • Contains input resistance (R1), base-to-emitter resistance (RBE). Contains diode between collector and emitter. Low saturation voltage. Large current capacity. Small-sized package making it easy to provide highdensity, small-sized hybrid ICs. Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current (pulse) Collector dissipation Jumction temperature Storage temperature Symbol VCBO VCEO VEBO IC ICP PC Tj T.

📥 Download Datasheet

Datasheet preview – 2SD2099

Datasheet Details

Part number 2SD2099
Manufacturer Guangdong Kexin Industrial
File Size 80.96 KB
Description NPN Epitaxial Planar Silicon Transistor
Datasheet download datasheet 2SD2099 Datasheet
Additional preview pages of the 2SD2099 datasheet.

📁 Similar Datasheet

  • 2SD2099 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SD2099-HF - NPN Transistors (Kexin)
  • 2SD2091 - NPN Transistor (Rohm)
  • 2SD2091 - NPN Transistor (INCHANGE)
  • 2SD2092 - NPN TRANSISTOR (Toshiba Semiconductor)
  • 2SD2093 - NPN Transistor (INCHANGE)
  • 2SD2093 - NPN Triple Diffused Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SD2093 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SD2094 - Power Transistor (Inchange Semiconductor)
  • 2SD2095 - SILICON POWER TRANSISTOR (SavantIC)
Other Datasheets by Guangdong Kexin Industrial

Full PDF Text Transcription

Click to expand full text

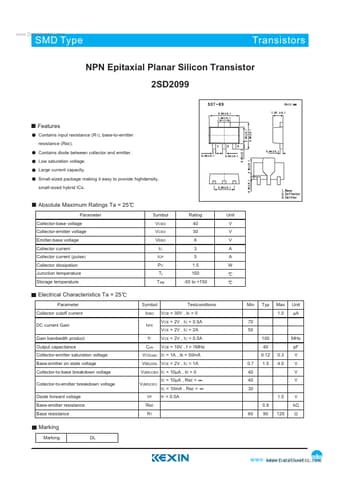

www.DataSheet4U.com SMD Type Transistors NPN Epitaxial Planar Silicon Transistor 2SD2099 Features Contains input resistance (R1), base-to-emitter resistance (RBE). Contains diode between collector and emitter. Low saturation voltage. Large current capacity. Small-sized package making it easy to provide highdensity, small-sized hybrid ICs. Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current (pulse) Collector dissipation Jumction temperature Storage temperature Symbol VCBO VCEO VEBO IC ICP PC Tj Tstg Rating 40 30 6 3 5 1.
