HM120N04K - N-Channel Enhancement Mode Power MOSFET

H&M Semiconductor

📥 Download Datasheet

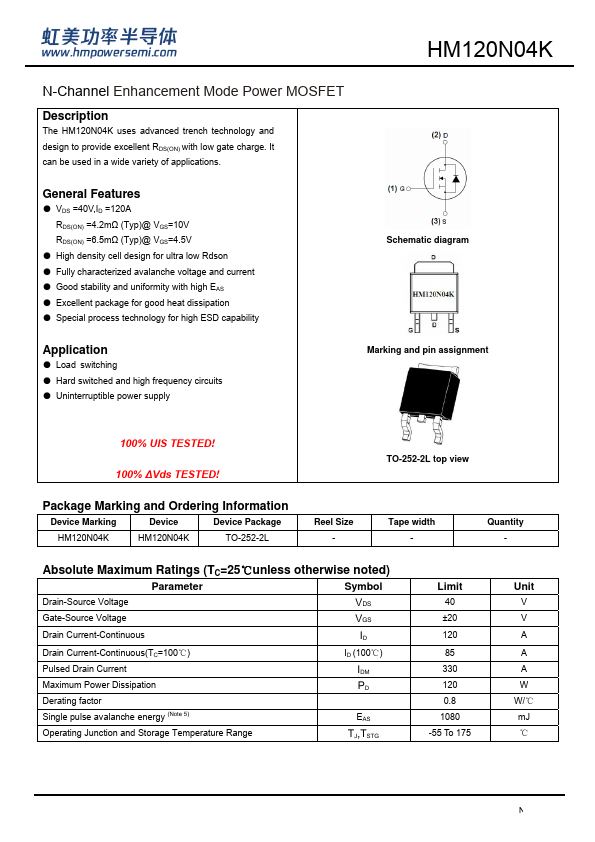

HM120N04K Datasheet Preview — Preview of HM120N04K PDF

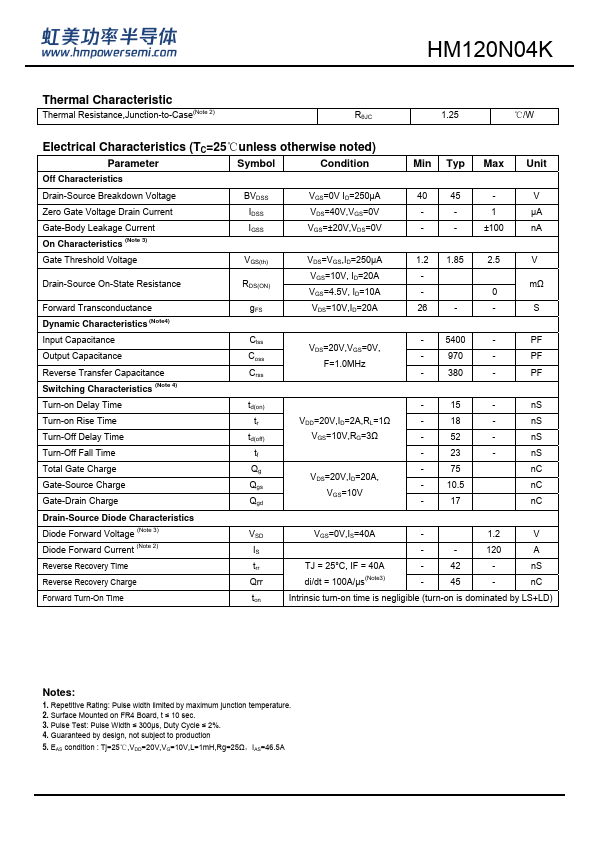

datasheet Preview Page 2

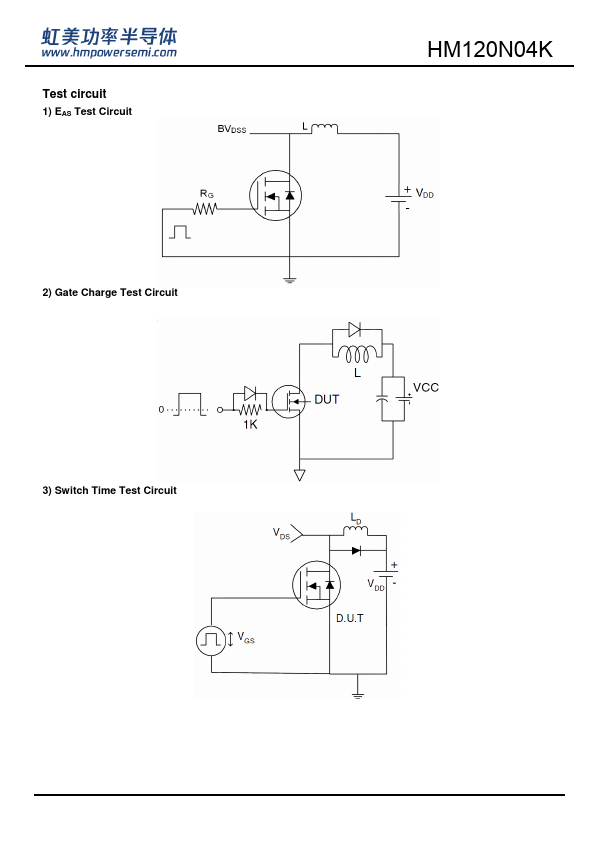

datasheet Preview Page 3

Datasheet Details

Part number	HM120N04K
Manufacturer	H&M Semiconductor
File Size	674.94 KB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	HM120N04K-HMSemiconductor.pdf

HM120N04K Product details

Description

The HM120N04K uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

VDS =40V,ID =120A RDS(ON) =4.2mΩ (Typ)@ VGS=10V RDS(ON) =6.5mΩ (Typ)@ VGS=4.5V.
High density cell design for ultra low Rdson.
Fully characterized avalanche voltage and current.
Good stability and uniformity with high EAS.
Excellent package for good heat dissipation.
Special process technology for high ESD capability Schematic diagram.
