HM1234 Datasheet - H&M Semiconductor

HM1234 High Speed Low Noise LDO

The HM1234 series are highly accurate, low noise, CMOS LDO Voltage Regulators. Offering low output noise, high ripple rejection ratio, low dropout and very fast turn-on times, the HM1234 series is ideal for today’s cutting edge mobile phone. Internally the HM1234 includes a reference voltage source,.

HM1234 Features

* Low voltage drop: 0.12V@100mA@VOUT=3.3V(Typ.)

* Standby Mode: 0.1uA

* Low temperature coefficient

* High input voltage (up to 8V)

* Output voltage accuracy: tolerance ±2%

* SOT23-5、SOT89 package Applications

* Battery-powered equipment

* Communication equipment

HM1234-HMSemiconductor.pdf

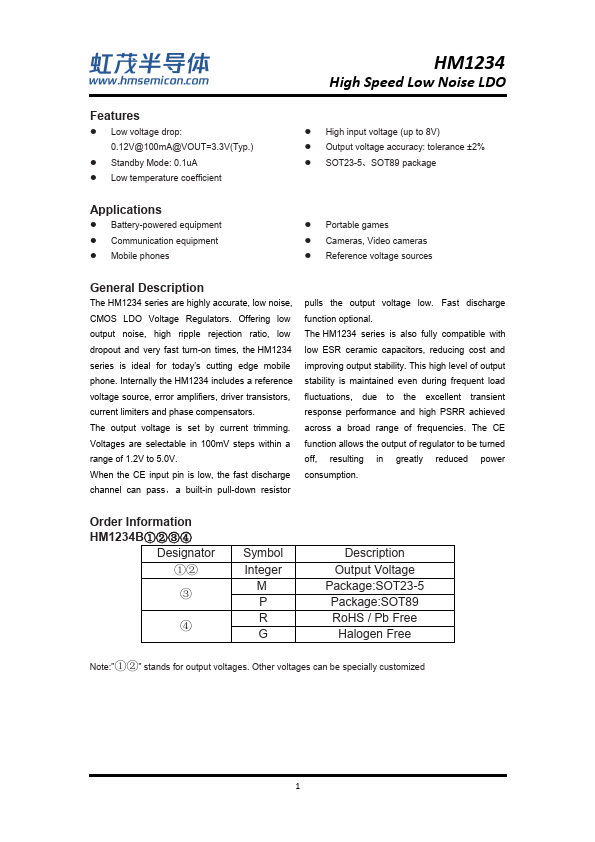

Preview of HM1234 PDF

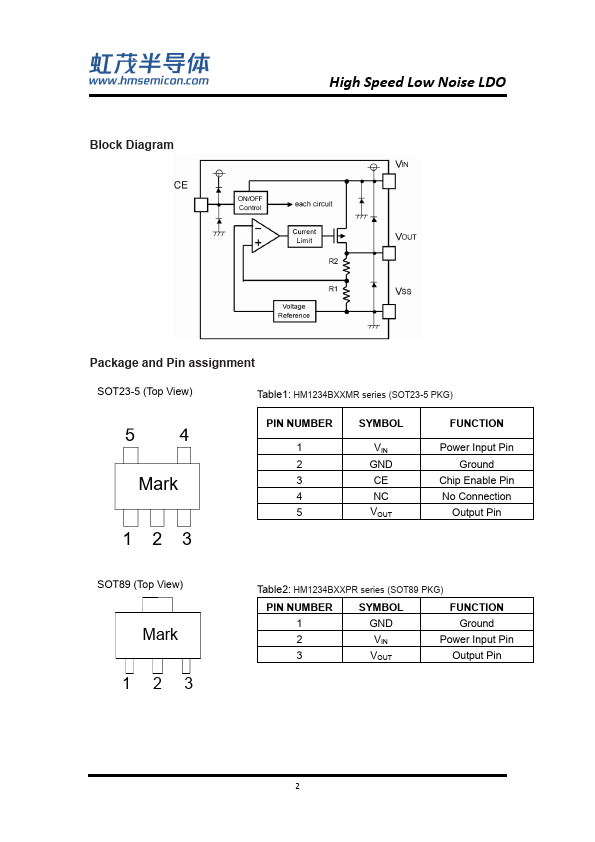

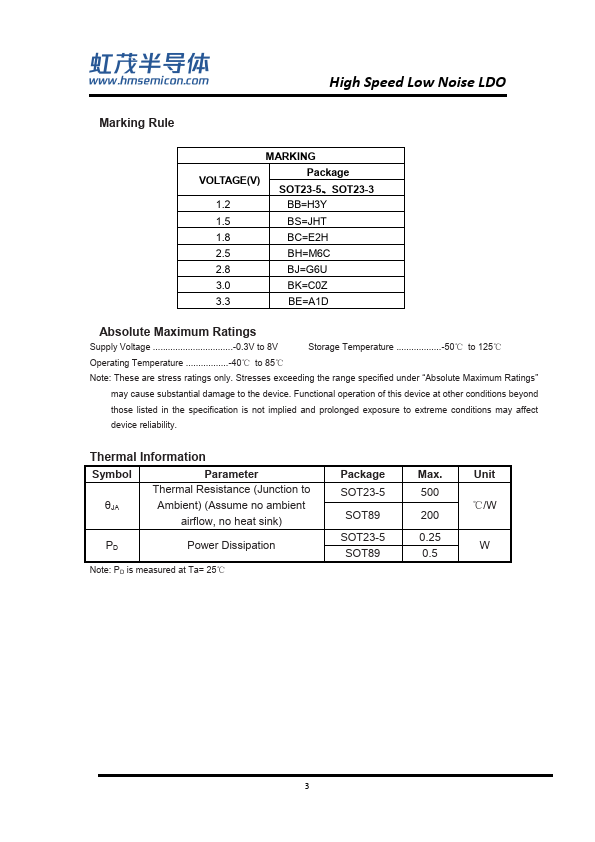

HM1234 Datasheet Preview Page 2 HM1234 Datasheet Preview Page 3

Datasheet Details

Part number:

HM1234

Manufacturer:

H&M Semiconductor

File Size:

906.31 KB

Description:

High speed low noise ldo.
