HM20DN06KA - Dual N-Channel Enhancement Mode Power MOSFET

Product Overview

H&M Semiconductor

📥 Download Datasheet

HM20DN06KA Dual N-Channel Enhancement Mode Power MOSFET by H&M Semiconductor - Datasheet Preview — Datasheet preview – HM20DN06KA

Datasheet Details

Part number	HM20DN06KA
Manufacturer	H&M Semiconductor
File Size	600.31 KB
Description	Dual N-Channel Enhancement Mode Power MOSFET
Datasheet	HM20DN06KA Datasheet

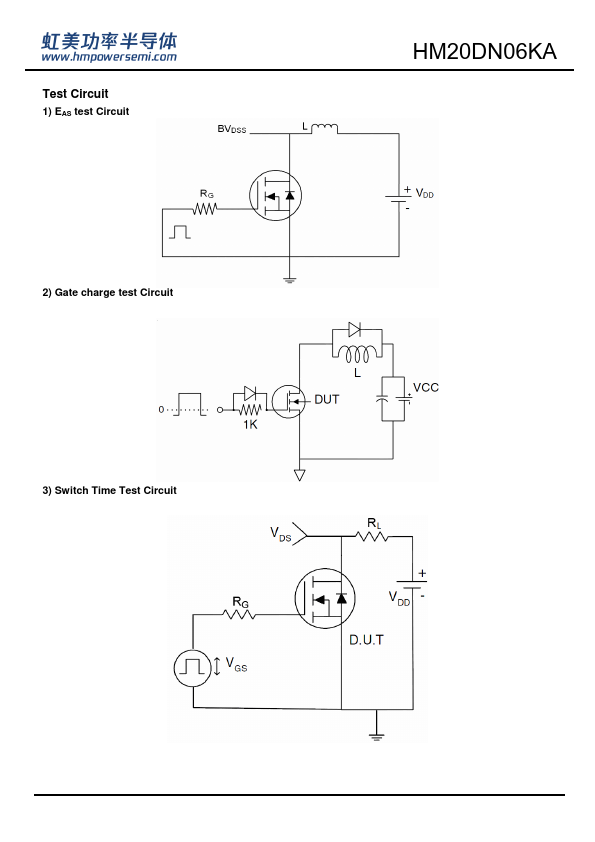

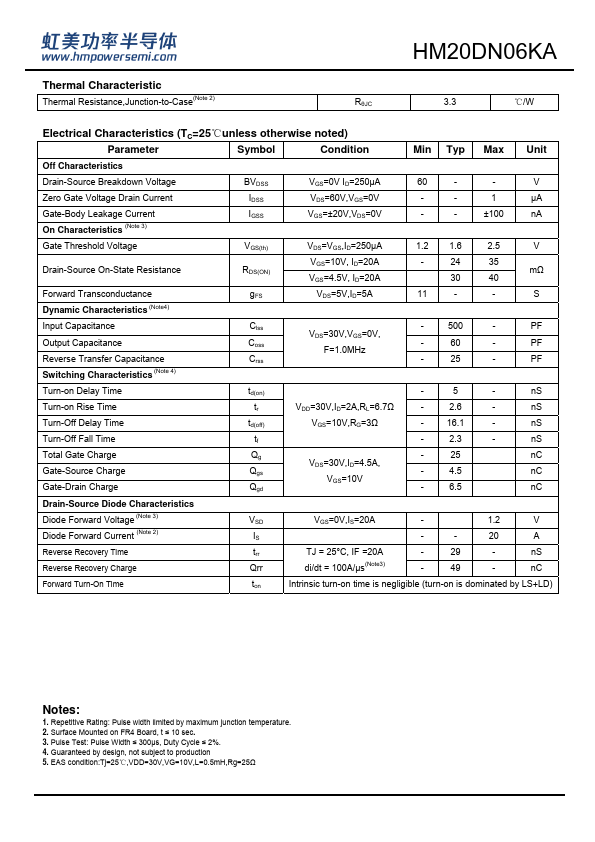

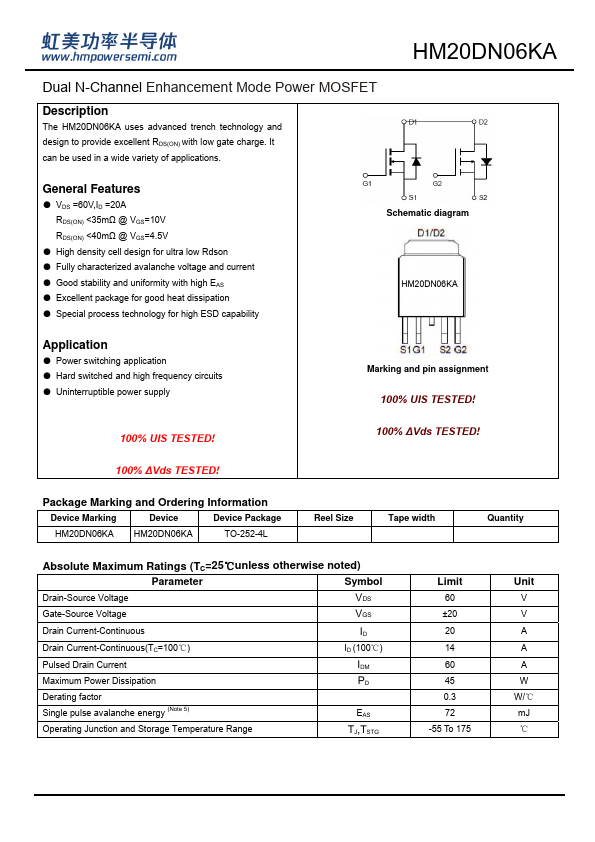

Additional preview pages of the HM20DN06KA datasheet.

Product details

Description

The HM20DN06KA uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

VDS =60V,ID =20A RDS(ON).
