HM20N03Q - MOSFET

Product Overview

H&M Semiconductor

📥 Download Datasheet

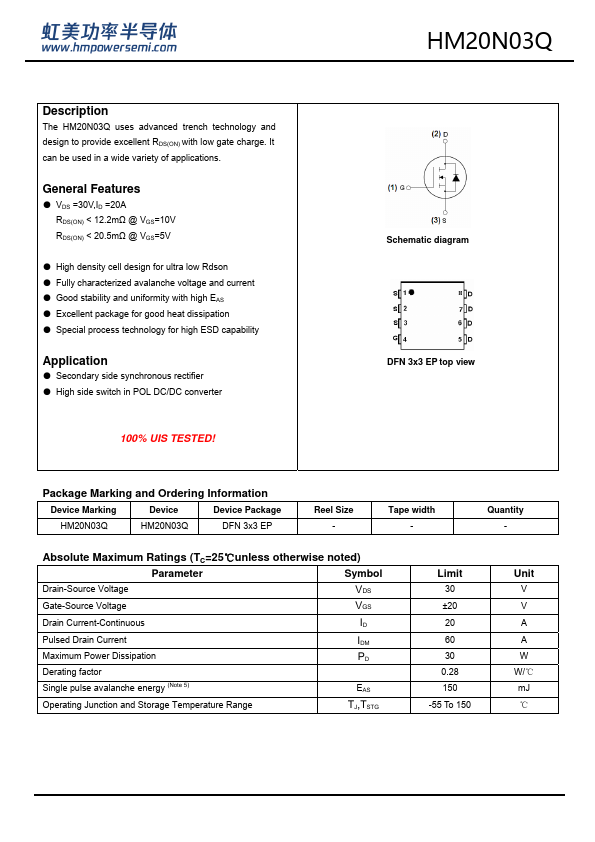

HM20N03Q MOSFET by H&M Semiconductor - Datasheet Preview — Datasheet preview – HM20N03Q

Datasheet Details

Part number	HM20N03Q
Manufacturer	H&M Semiconductor
File Size	591.54 KB
Description	MOSFET
Datasheet	HM20N03Q Datasheet

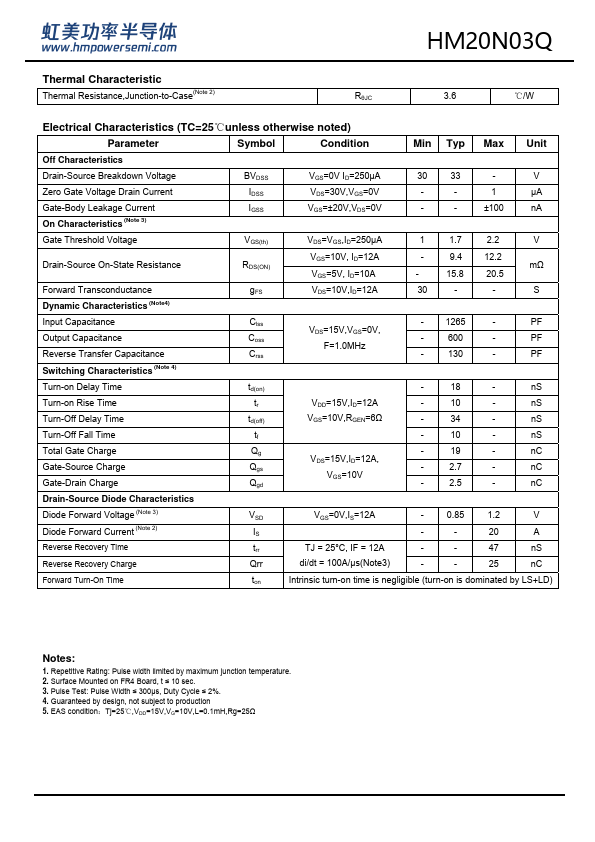

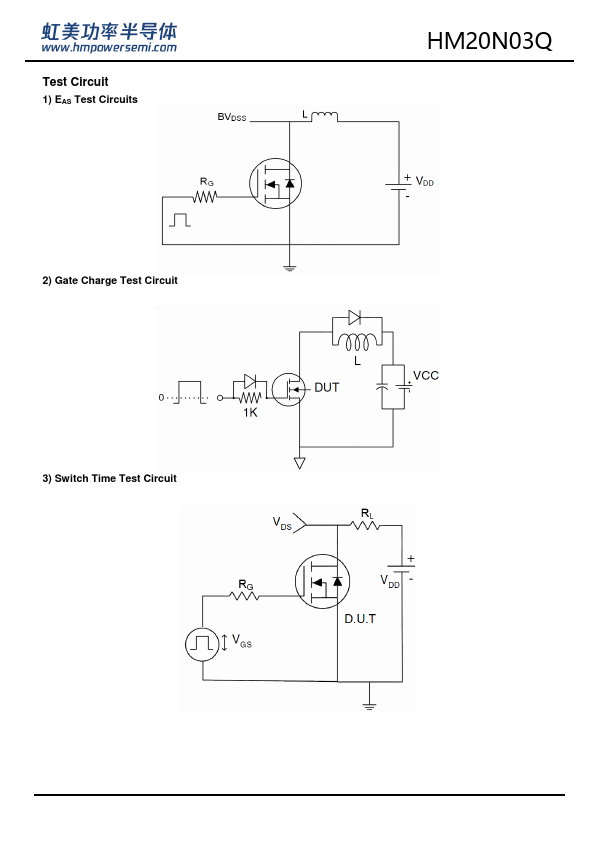

Additional preview pages of the HM20N03Q datasheet.

Product details

Description

The HM20N03Q uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

VDS =30V,ID =20A RDS(ON) < 12.2mΩ @ VGS=10V RDS(ON) < 20.5mΩ @ VGS=5V.
High density cell design for ultra low Rdson.
Fully characterized avalanche voltage and current.
Good stability and uniformity with high EAS.
Excellent package for good heat dissipation.
Special process technology for high ESD capability.
