HM20N06KA - N-Channel Enhancement Mode Power MOSFET

Product Overview

H&M Semiconductor

📥 Download Datasheet

HM20N06KA N-Channel Enhancement Mode Power MOSFET by H&M Semiconductor - Datasheet Preview — Datasheet preview – HM20N06KA

Datasheet Details

Part number	HM20N06KA
Manufacturer	H&M Semiconductor
File Size	439.17 KB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	HM20N06KA Datasheet

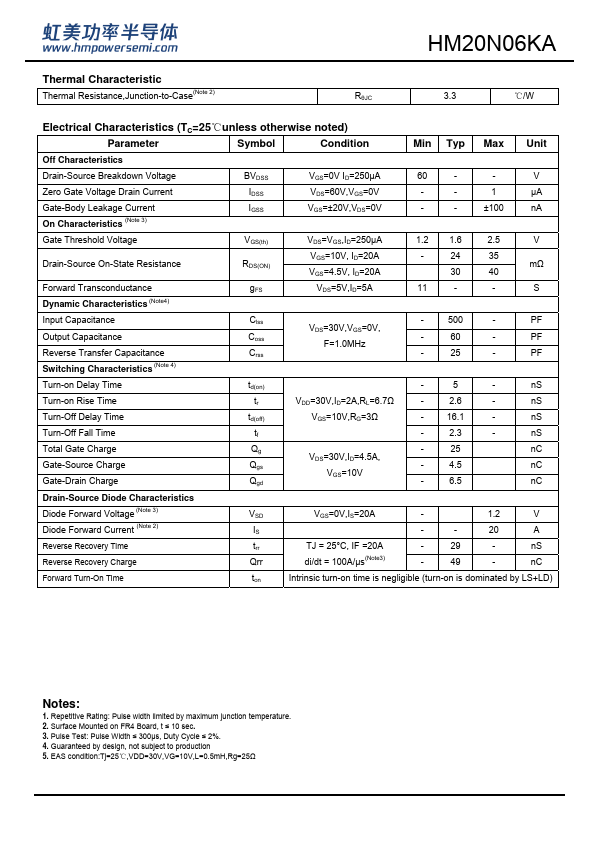

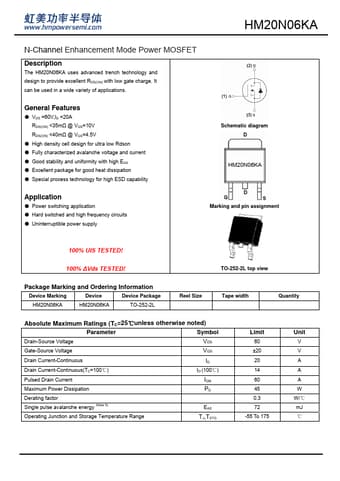

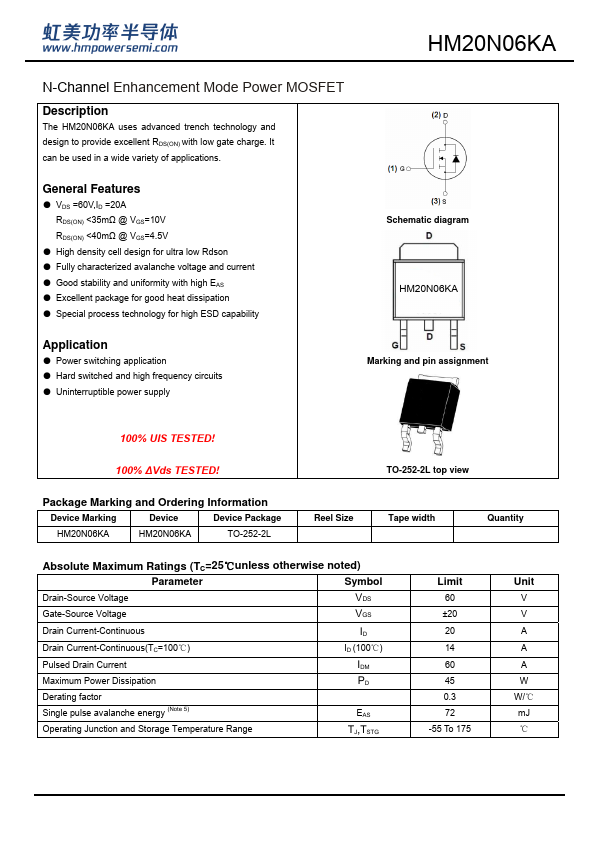

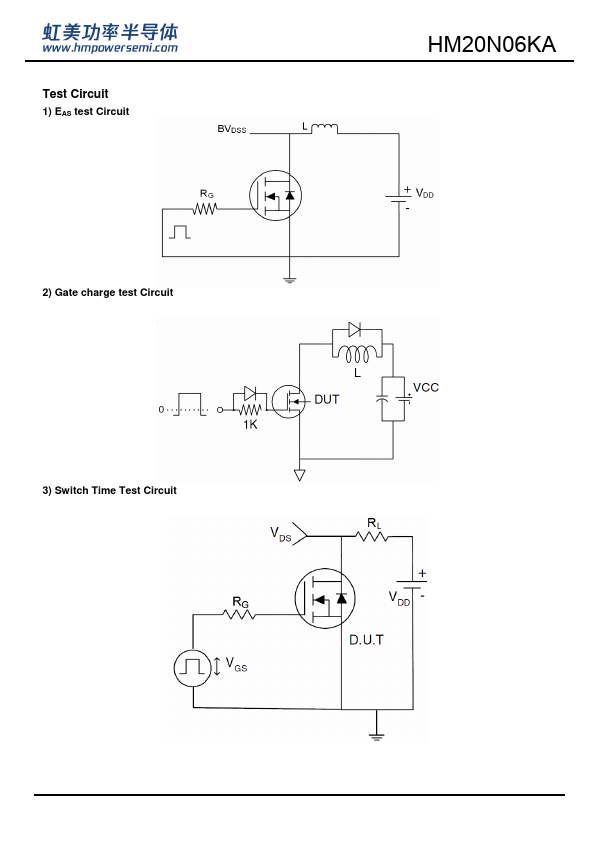

Additional preview pages of the HM20N06KA datasheet.

Product details

Description

The HM20N06KA uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

VDS =60V,ID =20A RDS(ON).
