HM20P02Q - P-Channel Enhancement Mode Power MOSFET

H&M Semiconductor

📥 Download Datasheet

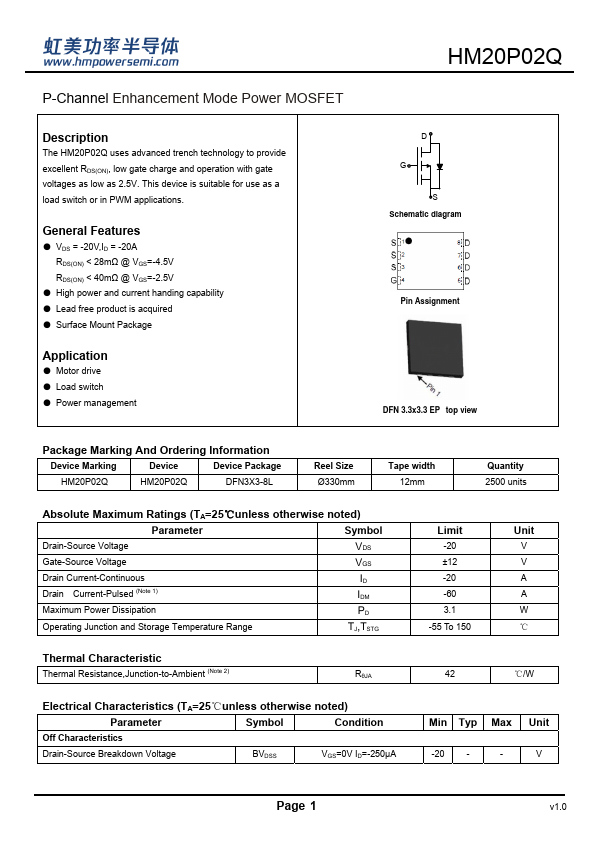

HM20P02Q Datasheet Preview — Preview of HM20P02Q PDF

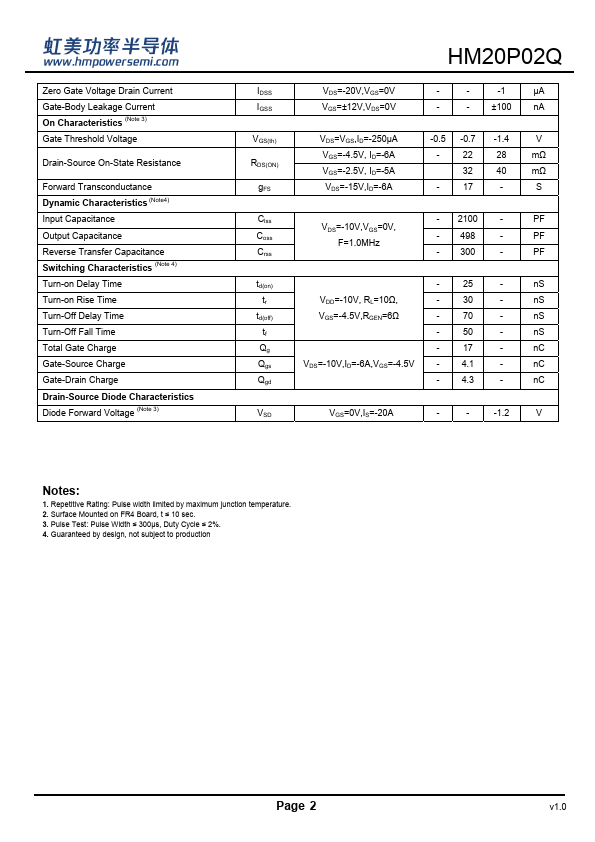

datasheet Preview Page 2

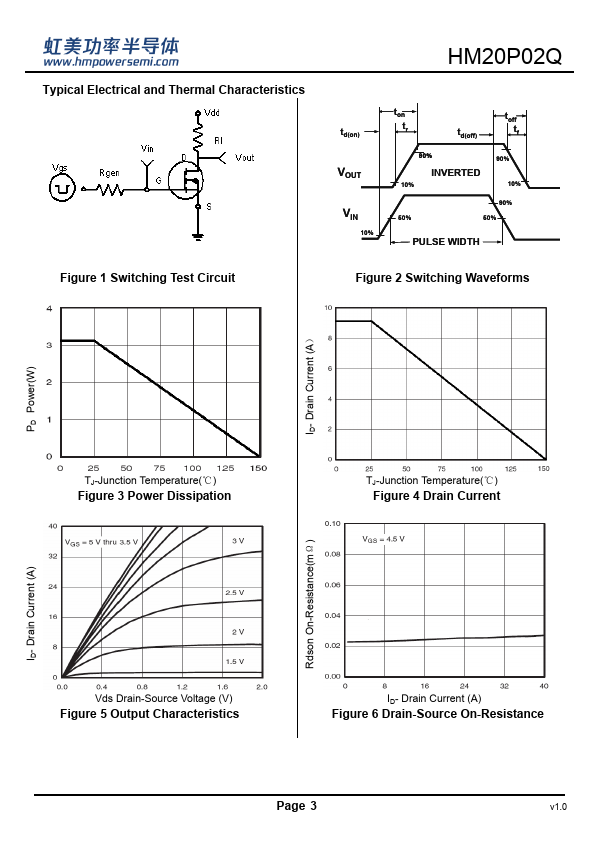

datasheet Preview Page 3

Datasheet Details

Part number	HM20P02Q
Manufacturer	H&M Semiconductor
File Size	595.61 KB
Description	P-Channel Enhancement Mode Power MOSFET
Datasheet	HM20P02Q-HMSemiconductor.pdf

HM20P02Q Product details

Description

The HM20P02Q uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V.

Features

VDS = -20V,ID = -20A RDS(ON) < 28mΩ @ VGS=-4.5V RDS(ON) < 40mΩ @ VGS=-2.5V.
High power and current handing capability.
Lead free product is acquired.
Surface Mount Package.
