HM20P03Q - P-Channel Enhancement Mode Power MOSFET

H&M Semiconductor

📥 Download Datasheet

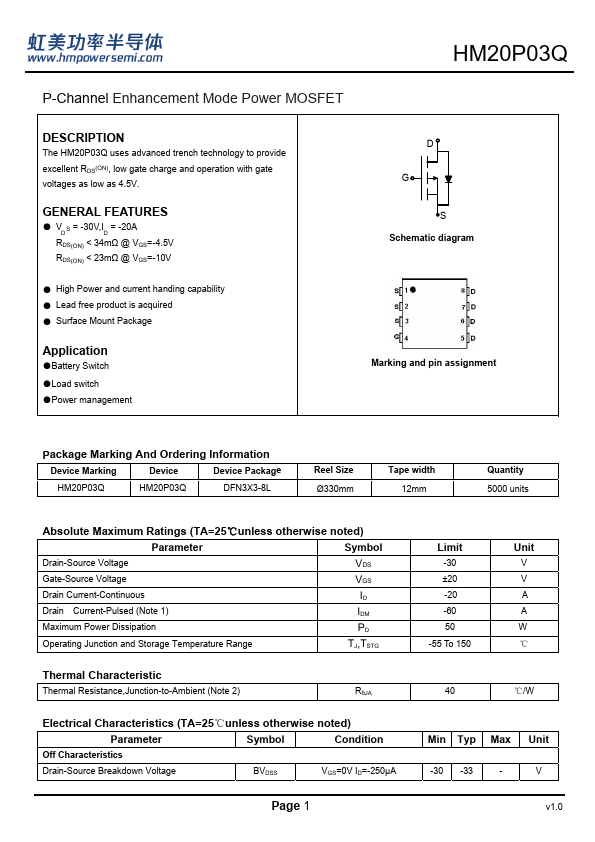

HM20P03Q Datasheet Preview — Preview of HM20P03Q PDF

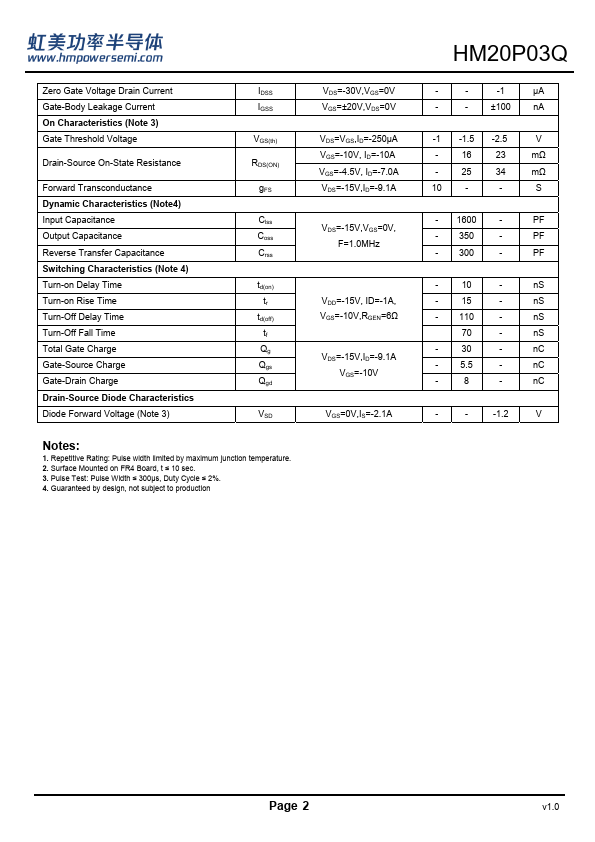

datasheet Preview Page 2

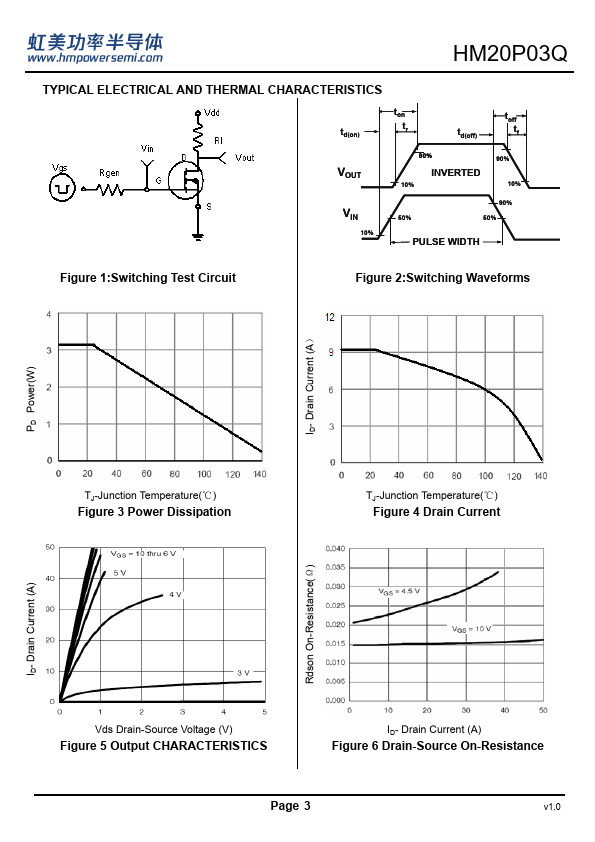

datasheet Preview Page 3

Datasheet Details

Part number	HM20P03Q
Manufacturer	H&M Semiconductor
File Size	586.62 KB
Description	P-Channel Enhancement Mode Power MOSFET
Datasheet	HM20P03Q-HMSemiconductor.pdf

HM20P03Q Product details

Description

The HM20P03Q uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V.

Features

V S = -30V,I = -20A D D RDS(ON) < 34mΩ @ VGS=-4.5V RDS(ON) < 23mΩ @ VGS=-10V.
High Power and current handing capability.
Lead free product is acquired.
Surface Mount Package.
