HM2318D N-Channel 40V(D-S) MOSFET

H&M Semiconductor

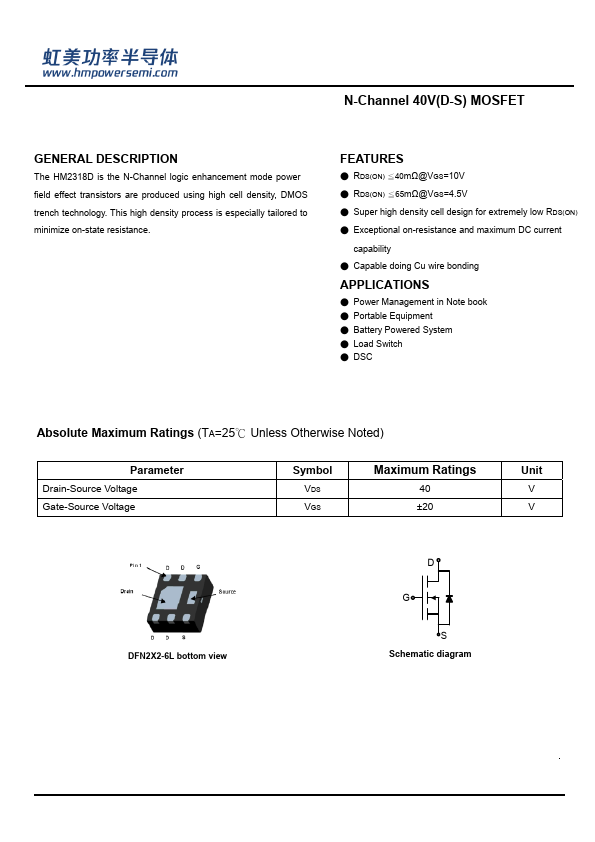

Description

+0' N-Channel 40V(D-S) MOSFET GENERAL .
The HM2318D is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology.

📥 Download Datasheet

HM2318D Datasheet Preview — Preview of HM2318D PDF

Datasheet Specifications

Part number: HM2318D
Manufacturer: H&M Semiconductor
File Size: 1.14 MB
Datasheet: HM2318D-HMSemiconductor.pdf
Description: N-Channel 40V(D-S) MOSFET

Features

* RDS(ON) ≦40mΩ@VGS=10V
* RDS(ON) ≦65mΩ@VGS=4.5V
* Super high density cell design for extremely low RDS(ON)
* Exceptional on-resistance and maximum DC current capability

Applications

* Power Management in Note book
* Portable Equipment
* Battery Powered System
* Load Switch
* DSC Absolute Maximum Ratings (TA=25℃ Unless Otherwise Noted) Parameter Drain-Source Voltage Gate-Source Voltage Symbol VDS VGS Maximum Ratings 40 ±20 DFN2X2-6L bottom view D G S
