HM2N65PR Datasheet - H&M Semiconductor

HM2N65PR N-channel Enhanced VDMOSFET

HM2N65PR the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and h.

HM2N65PR Features

* l Fast Switching l ESD Improved Capability l Low Gate Charge (Typical Data: 15nC) l Low Reverse transfer capacitances(Typical: 9pF) l 100% Single Pulse avalanche energy Test Applications: Power switch circuit of adaptor and charger. Absolute(Tc= 25℃ unless otherwise specified): Symbol Parameter

HM2N65PR-HMSemiconductor.pdf

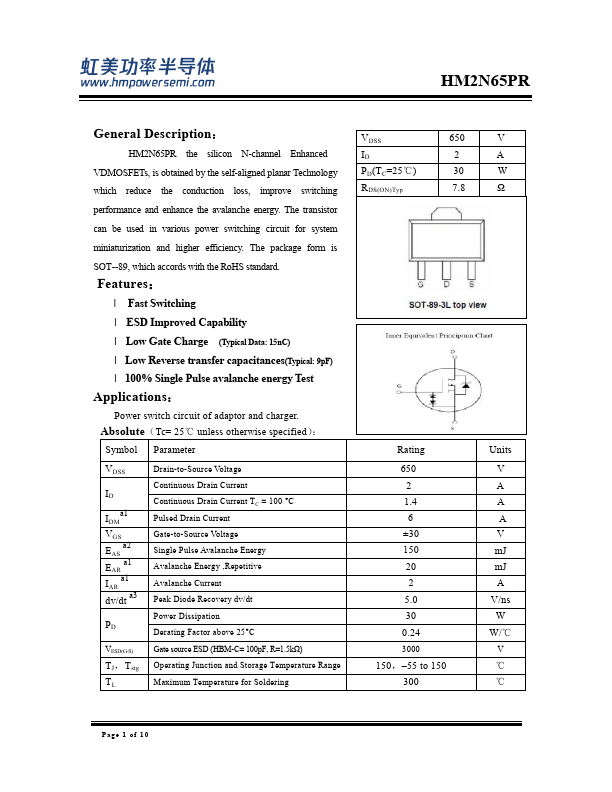

Preview of HM2N65PR PDF

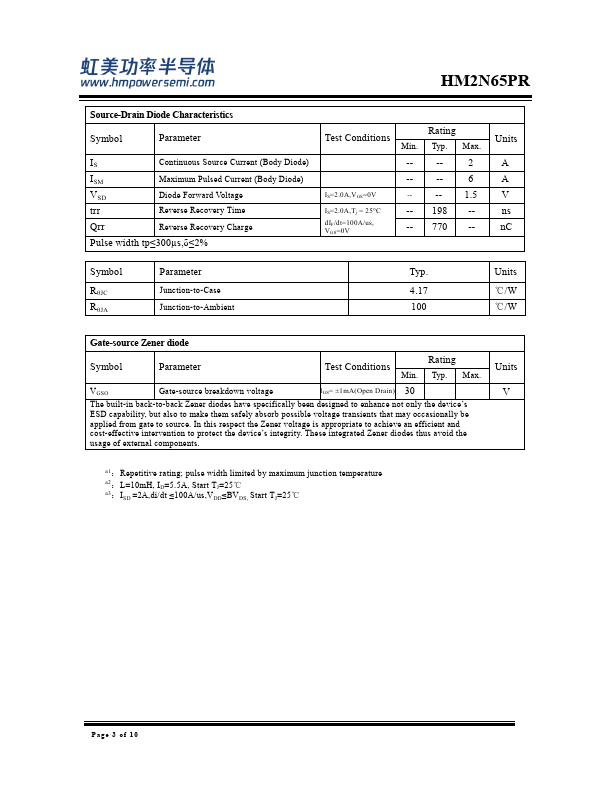

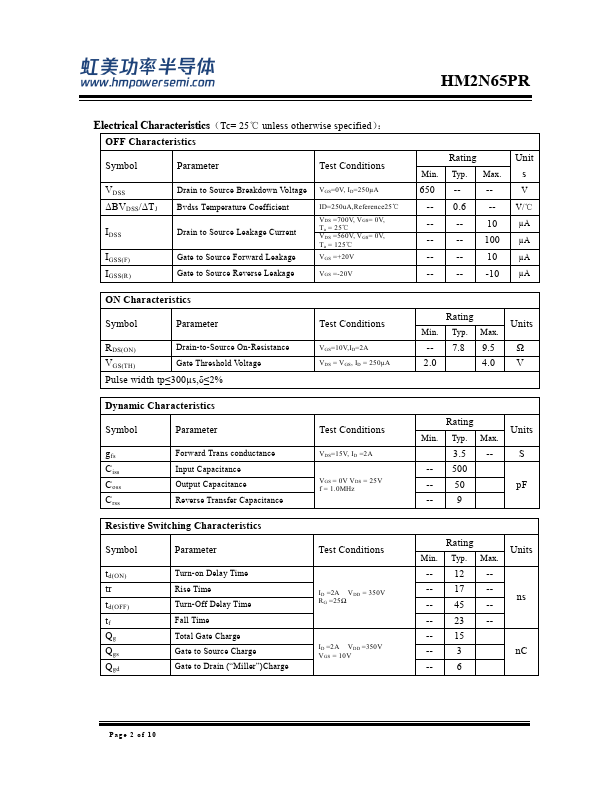

HM2N65PR Datasheet Preview Page 2 HM2N65PR Datasheet Preview Page 3

Datasheet Details

Part number:

HM2N65PR

Manufacturer:

H&M Semiconductor

File Size:

0.96 MB

Description:

N-channel enhanced vdmosfet.
