HM4887 Datasheet, Mosfet, H&M Semiconductor

HM4887 Features

  • Mosfet
  • VDS =-100V,ID =-4.5A RDS(ON) <100mΩ @ VGS=-10V (Typ:85mΩ) S1 S2 Schematic diagram
  • Super high dense cell design
  • Advanced trench process technology
  • <

PDF File Details

Part number:

HM4887

Manufacturer:

H&M Semiconductor

File Size:

505.22kb

Download:

📄 Datasheet

Description:

Dual p-channel enhancement mode power mosfet. The HM4887 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide var

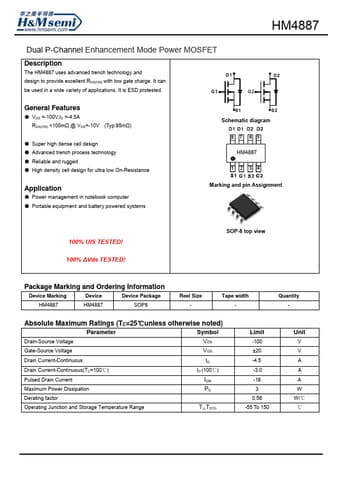

Datasheet Preview: HM4887 📥 Download PDF (505.22kb)
Page 2 of HM4887 Page 3 of HM4887

HM4887 Application

  • Applications It is ESD protested. D1 G1 G2 D2 General Features
  • VDS =-100V,ID =-4.5A RDS(ON) <100mΩ @ VGS=-10V (Typ:85mΩ) S1 S2 Sche
