HM4885A Datasheet, Mosfet, H&M semi

HM4885A Features

  • Mosfet
  • VDS = -40V,ID = -13A RDS(ON) <15mΩ @ VGS=-10V RDS(ON) <18mΩ @ VGS=-4.5V S1 S2 Schematic diagram
  • High power and current handing capability
  • Lead free produ

PDF File Details

Part number:

HM4885A

Manufacturer:

H&M semi

File Size:

628.94kb

Download:

📄 Datasheet

Description:

Dual p-channel enhancement mode power mosfet. The HM4885A uses advanced trench technology to provide excellent RDS(ON), This device is suitable for use as a load switch or in PWM

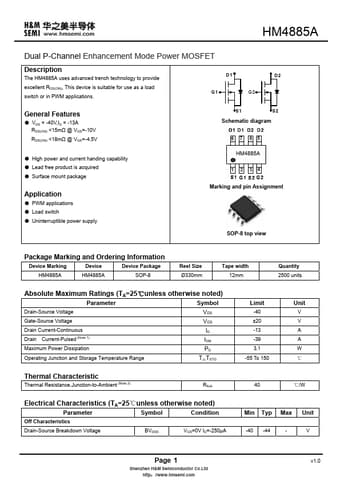

Datasheet Preview: HM4885A 📥 Download PDF (628.94kb)
Page 2 of HM4885A Page 3 of HM4885A

HM4885A Application

  • Applications G1 D1 G2 D2 General Features
  • VDS = -40V,ID = -13A RDS(ON) <15mΩ @ VGS=-10V RDS(ON) <18mΩ @ VGS=-4.5V S1 S2 Schematic d
