HM4886A, N-Channel Enhancement Mode Power MOSFET

HM$ N-Channel Enhancement Mode Power MOSFET .
The HM$ uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

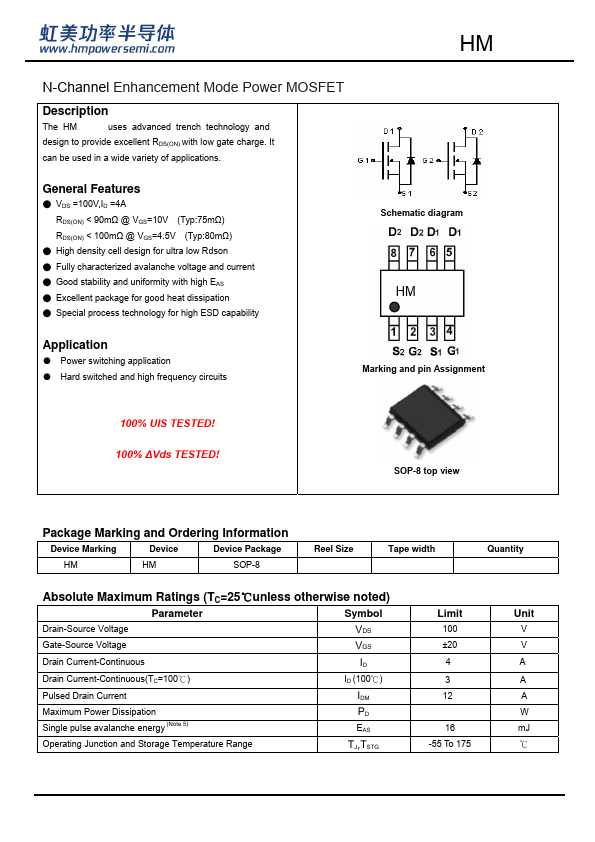

datasheet Preview Page 1 from Datasheet4u.com

HM4886A-HMsemi.pdf

HM4886A Datasheet Preview — Preview of HM4886A PDF

Datasheet Details

Part number:

HM4886A

Manufacturer:

H&M semi

File Size:

571.18 KB

Description:

N-Channel Enhancement Mode Power MOSFET

Features

* VDS =100V,ID =4A RDS(ON) < 90mΩ @ VGS=10V (Typ:75mΩ) RDS(ON) < 100mΩ @ VGS=4.5V (Typ:80mΩ)
* High density cell design for ultra low Rdson
* Fully characterized avalanche voltage and current
* Good stability and uniformity with high EAS
* Excellent package for good heat dissipat
