HM4P15Q Datasheet - H&M Semiconductor

HM4P15Q P-Channel Enhancement Mode Power MOSFET

HM4P15Q Features

* VD S = -150V,I = -4A RDS(ON) < 980mΩ @ VGS=-6V RDS(ON) < 780mΩ @ VGS=-10V

* High Power and current handing capability

* Lead free product is acquired

* Surface Mount Package Application

* Battery Switch

* Load switch

* Power management D G S Schematic diagram Marking and

HM4P15Q-HMSemiconductor.pdf

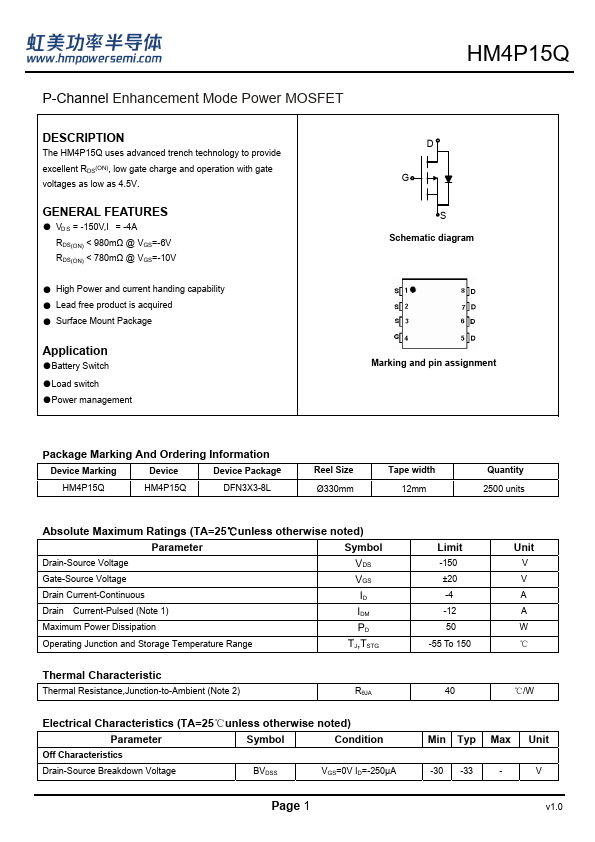

Preview of HM4P15Q PDF

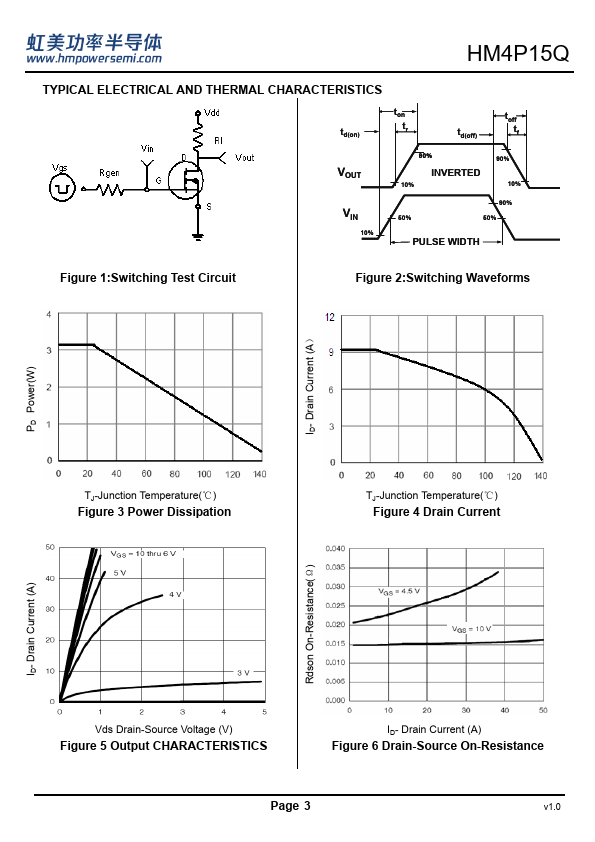

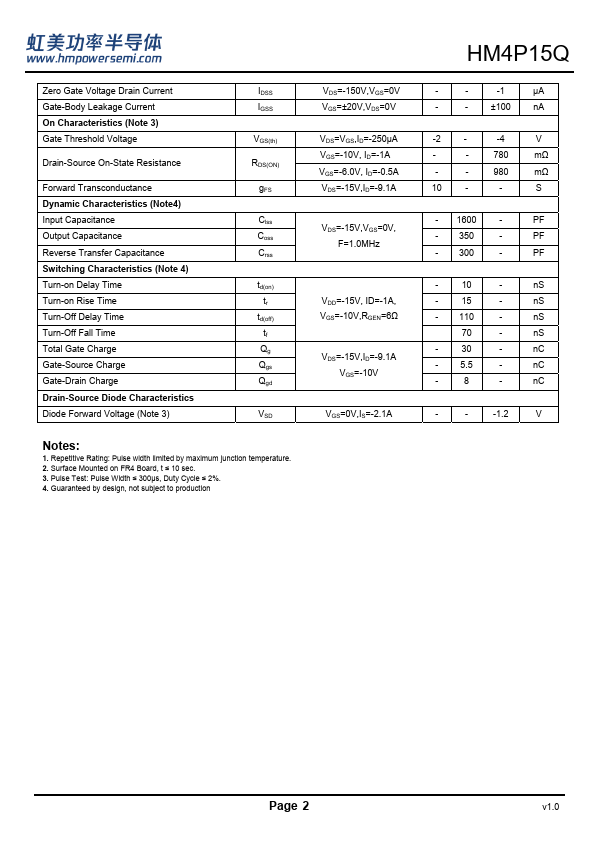

HM4P15Q Datasheet Preview Page 2 HM4P15Q Datasheet Preview Page 3

Datasheet Details

Part number:

HM4P15Q

Manufacturer:

H&M Semiconductor

File Size:

648.25 KB

Description:

P-channel enhancement mode power mosfet.
