Part number:
HM4P10PR
Manufacturer:
H&M Semiconductor
File Size:
1.03 MB
Description:
-100v p-channel enhancement mode mosfet.
Datasheet Details

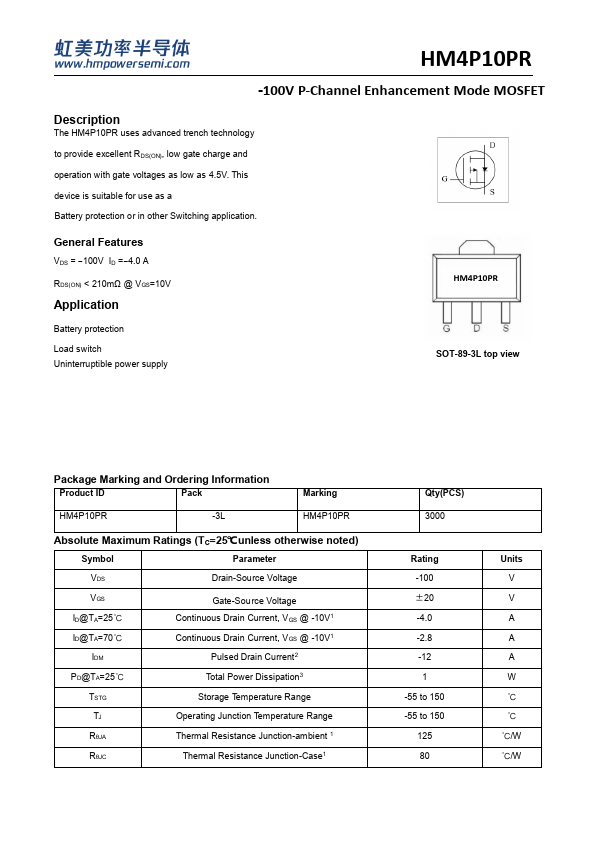

HM4P10PR Features
* VDS = -100V ID =-4.0 A RDS(ON) < 210mΩ @ VGS=10V Application Battery protection Load switch Uninterruptible power supply HM4P10PR SOT-89-3L top view Package Marking and Ordering Information Product ID Pack Marking HM4P10PR 627 -3L HM4P10PR Absolute Maximum Ratings (TC=25℃unless otherwise
Datasheet Details
HM4P10PR
H&M Semiconductor
1.03 MB
-100v p-channel enhancement mode mosfet.
