HM8N65I, HM8N65K Datasheet - H&M Semiconductor

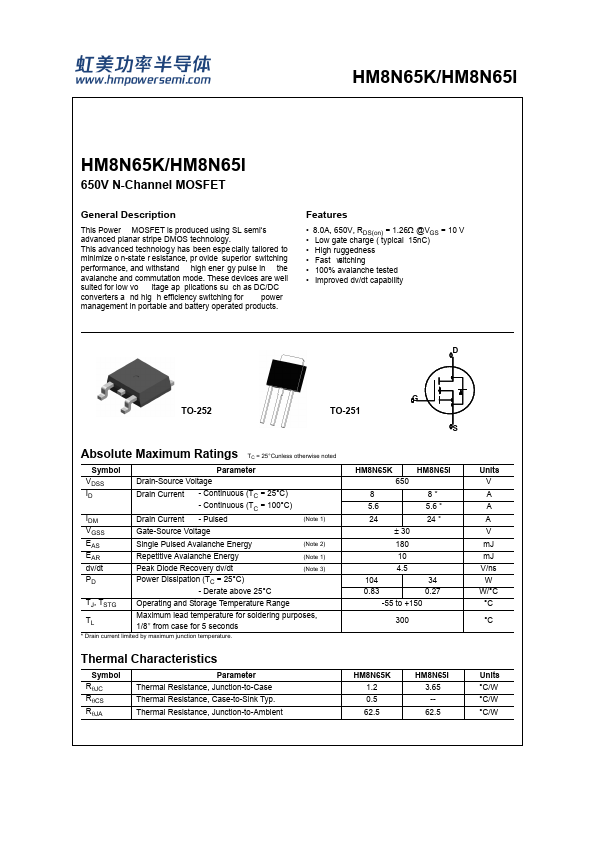

HM8N65I 650V N-Channel MOSFET

This Power MOSFET is produced using SL semi‘s advanced planar stripe DMOS technology. This advanced technology has been espe cially tailored to minimize o n-state r esistance, pr ovide superior switching performance, and withstand high ener gy pulse in the avalanche and commutation mode. These devic.

HM8N65I Features

* 8.0A, 650V, RDS(on) = 1.26 @VGS = 10 V

* Low gate charge ( typical 15nC)

* High ruggedness

* Fast wsitching

* 100% avalanche tested

* Improved dv/dt capability {D TO-252 TO-251

* ◀▲ {G

* {S Absolute Maximum Ratings TC = 25°Cu

HM8N65K-HMSemiconductor.pdf

This datasheet PDF includes multiple part numbers: HM8N65I, HM8N65K. Please refer to the document for exact specifications by model.

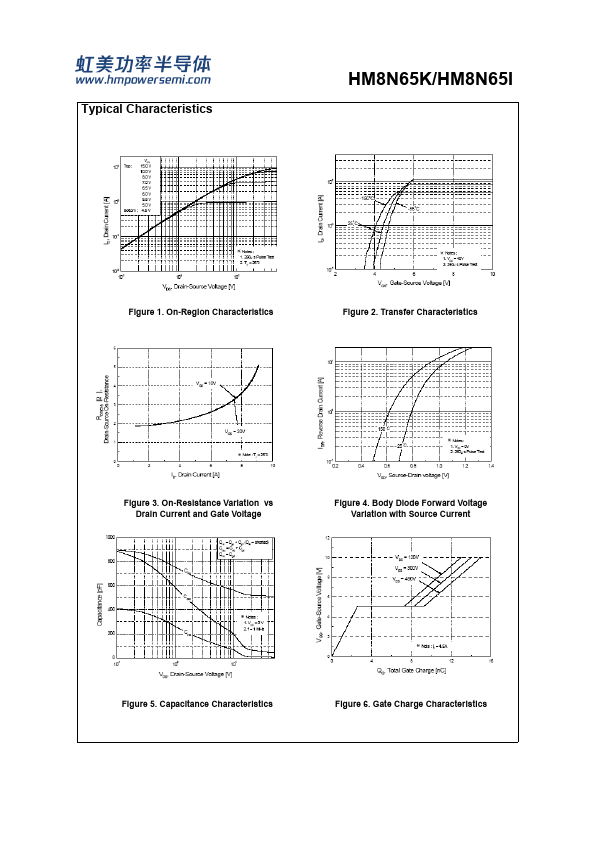

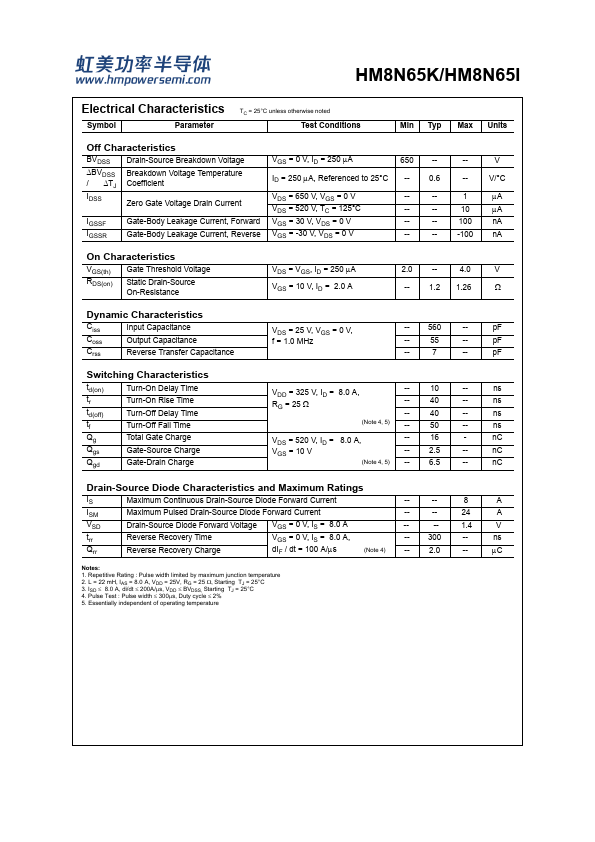

HM8N65I Datasheet Preview Page 2 HM8N65I Datasheet Preview Page 3

Datasheet Details

Part number:

HM8N65I, HM8N65K

Manufacturer:

H&M Semiconductor

File Size:

735.57 KB

Description:

650v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: HM8N65I, HM8N65K.
Please refer to the document for exact specifications by model.
