HMS260N10, N-Channel Super Trench II Power MOSFET

HMS260N10, HMS260N10D N-Channel Super Trench II Power MOSFET .
The series of devices uses Super Trench II technology that is uniquely optimized to provide the most efficient high frequency switching performance.

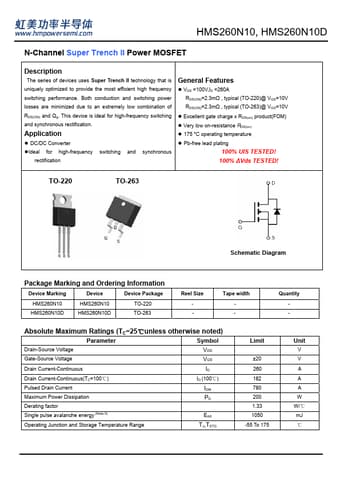

datasheet Preview Page 1 from Datasheet4u.com

HMS260N10-HMSemiconductor.pdf

HMS260N10 Datasheet Preview — Preview of HMS260N10 PDF

Datasheet Details

Part number:

HMS260N10

Manufacturer:

H&M Semiconductor

File Size:

760.03 KB

Description:

N-Channel Super Trench II Power MOSFET

Features

* VDS =100V,ID =260A RDS(ON)=2.3mΩ , typical (TO-220)@ VGS=10V RDS(ON)=2.3mΩ , typical (TO-263)@ VGS=10V
* Excellent gate charge x RDS(on) product(FOM)
* Very low on-resistance RDS(on)
* 175 °C operating temperature
* Pb-free lead plating 100% UIS TESTED! 100% ∆Vds TESTED! TO-22
