HMS4354 N-Channel Super Trench Power MOSFET

The HMS4354 uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching an.

HMS4354 Features

* VDS =30V,ID =30A RDS(ON)=1.8mΩ (typical) @ VGS=10V RDS(ON)=2.5mΩ (typical) @ VGS=4.5V

* Excellent gate charge x RDS(on) product(FOM)

* Very low on-resistance RDS(on)

* 150 °C operating temperature

* Pb-free lead plating

* 100% UIS tested Schematic diagram HMS4354 Marking a

HMS4354-HMSemiconductor.pdf

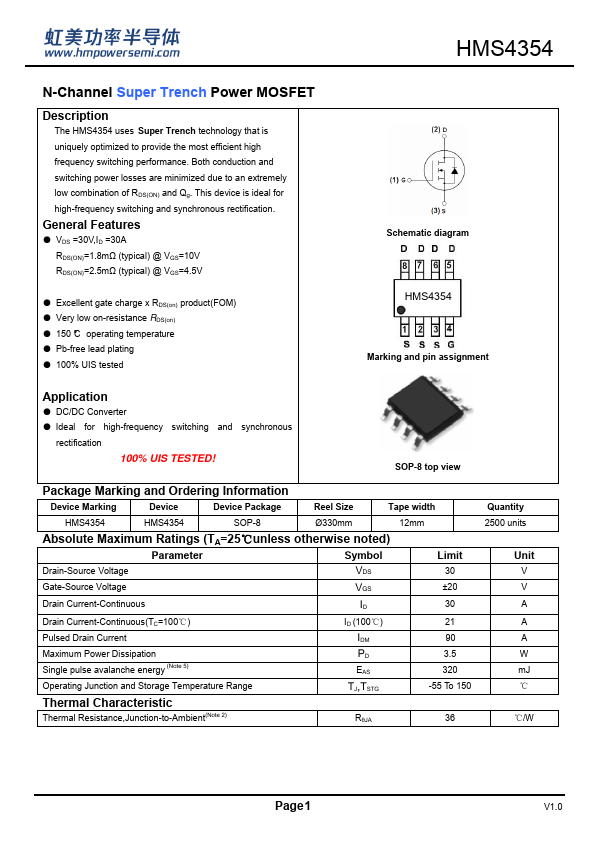

Preview of HMS4354 PDF

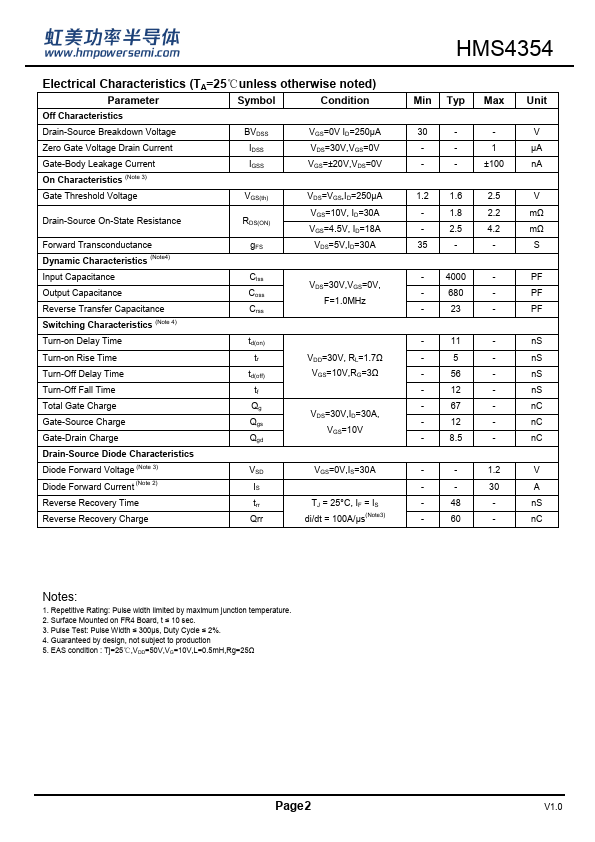

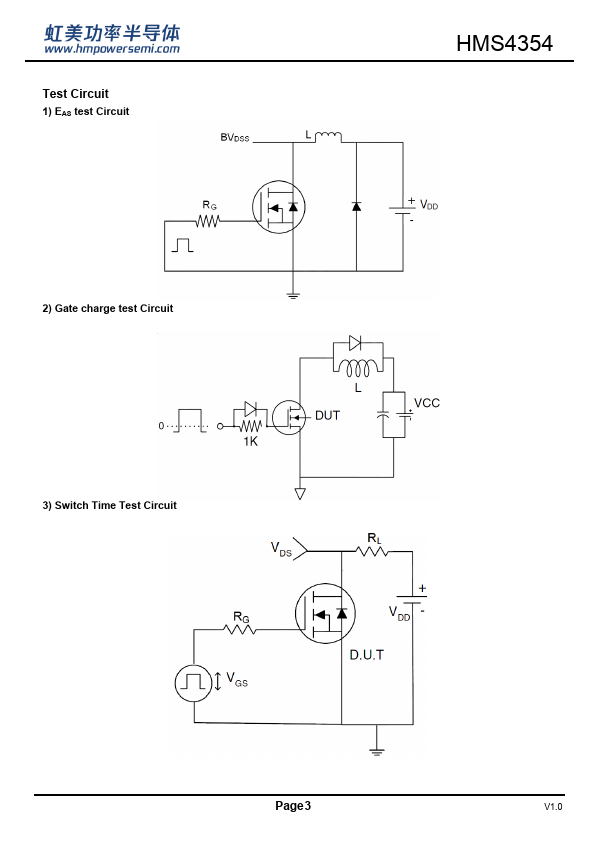

HMS4354 Datasheet Preview Page 2 HMS4354 Datasheet Preview Page 3

Datasheet Details

Part number:

HMS4354

Manufacturer:

H&M Semiconductor

File Size:

523.68 KB

Description:

N-channel super trench power mosfet.
