| Part number | HYG053N10NS1V |
|---|---|
| Manufacturer | HOOYI |
| File Size | 471.47 KB |
| Description | N-Channel Enhancement Mode MOSFET |
| Datasheet |
 HYG053N10NS1V Datasheet
|
| Note |
This datasheet PDF includes multiple part numbers: HYG053N10NS1V, HYG053N10NS1D. Please refer to the document for exact specifications by model. |
|
|

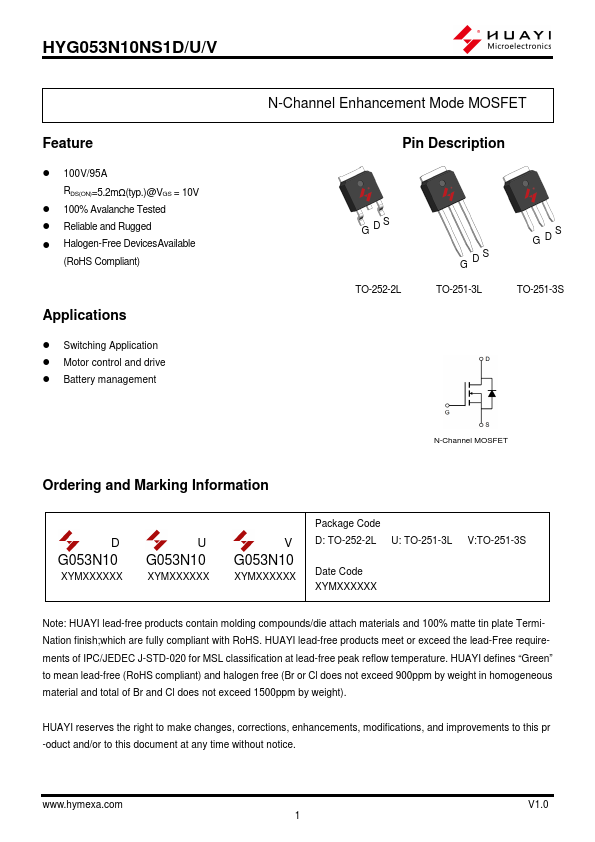

G DS TO-252-2L G DS TO-251-3L G DS TO-251-3S N-Channel MOSFET Ordering and Marking Information D G053N10 XYMXXXXXX U G053N10 XYMXXXXXX V G053N10 XYMXXXXXX Package Code D: TO-252-2L U: TO-251-3L V:TO-251-3S Date Code XYMXXXXXX Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plate TermiNation finish;which are fully compliant with RoHS.HUAYI lead-free products meet or exceed the lead-Free requirements of IPC/JEDEC J-STD-020 for MSL classif
