HY5208A, HY5208W N-Channel Enhancement Mode MOSFET

HUAYI

Description

HY5208W/A N-Channel Enhancement Mode MOSFET .
S D G TO-247A-3L S D G TO-3P-3L Applications. Power Management for Inverter Systems.

📥 Download Datasheet

HY5208A Datasheet Preview — This datasheet PDF includes multiple part numbers: HY5208A, HY5208W. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: HY5208A, HY5208W
Manufacturer: HUAYI
File Size: 633.17 KB
Datasheet: HY5208W-HUAYI.pdf
Description: N-Channel Enhancement Mode MOSFET
Note: This datasheet PDF includes multiple part numbers: HY5208A, HY5208W.
Please refer to the document for exact specifications by model.

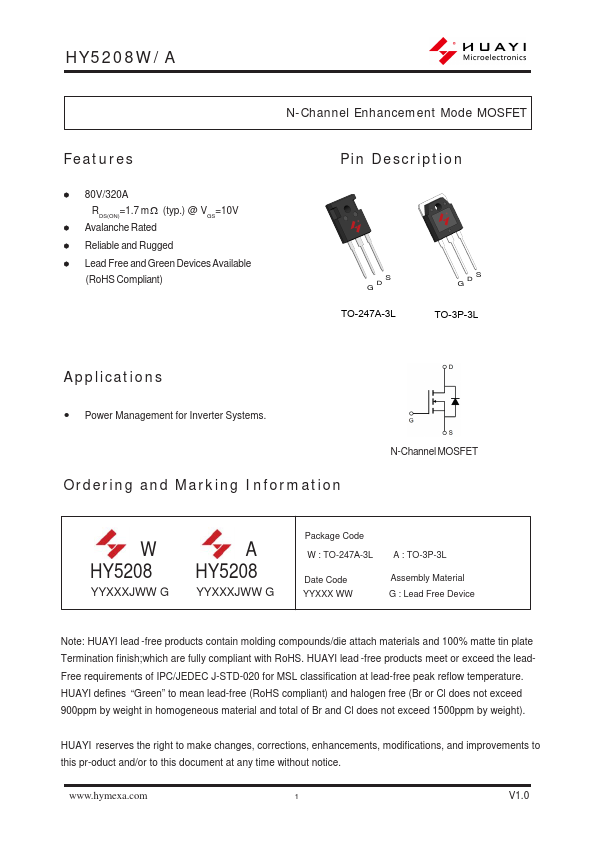

Features

* 80V/320A RDS(ON)=1.7 m  (typ. ) @ VGS=10V
* Avalanche Rated
* Reliable and Rugged

Applications

* Power Management for Inverter Systems. Ordering and Marking Information N-Channel MOSFET W HY5208 YYXXXJWW G A HY5208 YYXXXJWW G Package Code W : TO-247A-3L A : TO-3P-3L Date Code YYXXX WW Assembly Material G : Lead Free Device Note: HUAYI lead -free products contain molding compounds/
