HYG024N03LR1D N-Channel Enhancement Mode MOSFET

HUAYI

Description

HYG024N03LR1D Single N-Channel Enhancement Mode MOSFET .
S D G Applications. Battery Protection. DC-DC Converters Single N-Channel MOSFET Ordering and Marking Information D G024N03 XYMXXXXXX P.

📥 Download Datasheet

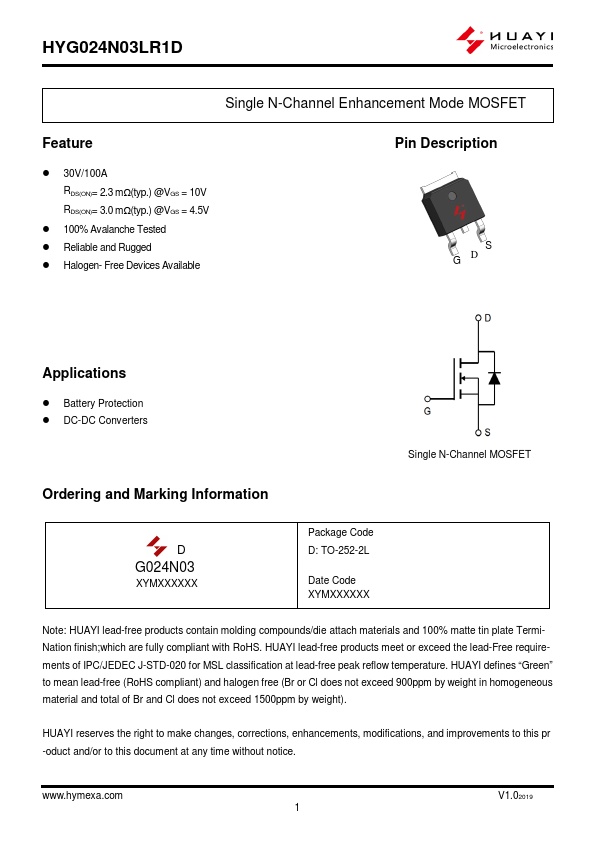

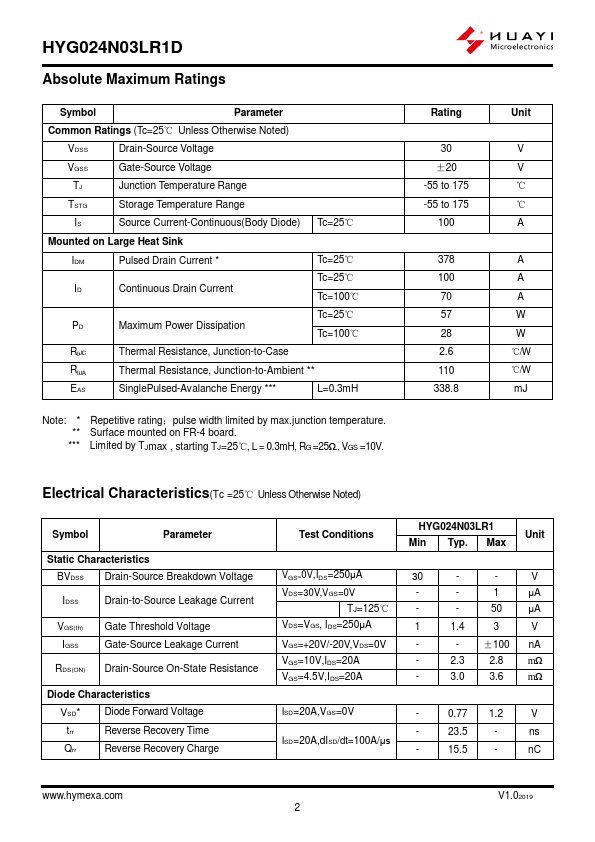

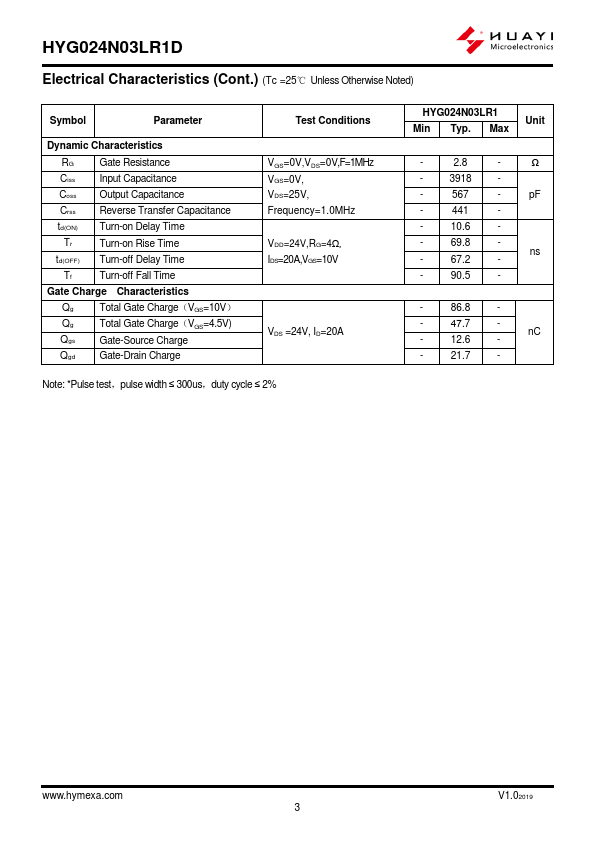

HYG024N03LR1D Datasheet Preview — Preview of HYG024N03LR1D PDF

Datasheet Specifications

Part number: HYG024N03LR1D
Manufacturer: HUAYI
File Size: 888.60 KB
Datasheet: HYG024N03LR1D-HUAYI.pdf
Description: N-Channel Enhancement Mode MOSFET

Applications

* Battery Protection
* DC-DC Converters Single N-Channel MOSFET Ordering and Marking Information D G024N03 XYMXXXXXX Package Code D: TO-252-2L Date Code XYMXXXXXX Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plate TermiNation finish;wh
