HYG024N03LR1P Datasheet - HUAYI

HYG024N03LR1P, N-Channel Enhancement Mode MOSFET

HYG024N03LR1P/B .
TO-220FB-3L TO-263-2L Applications. Switching application. Power management for inverter systems Ordering and Marking Information N-Cha.

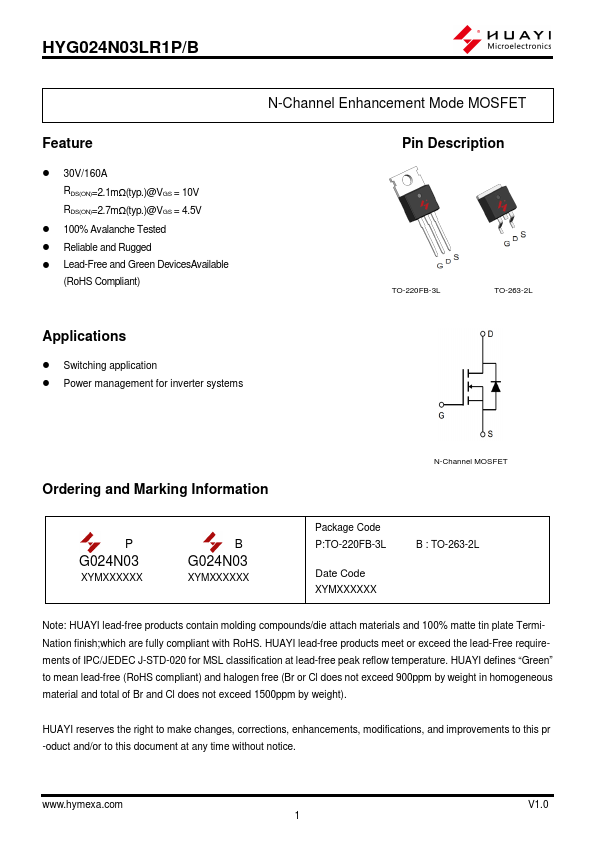

datasheet Preview Page 1 from Datasheet4u.com

HYG024N03LR1P-HUAYI.pdf

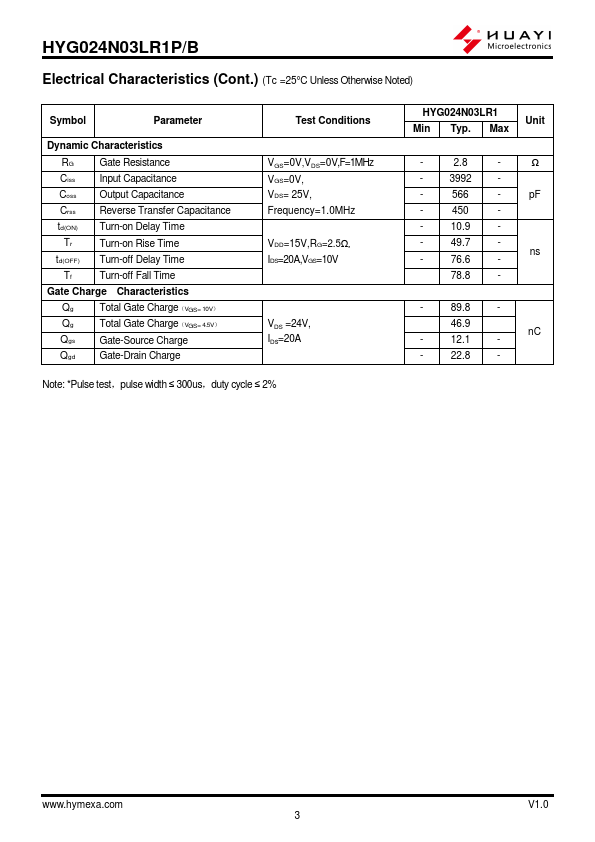

HYG024N03LR1P Datasheet Preview — Preview of HYG024N03LR1P PDF

Datasheet Details

Part number:

HYG024N03LR1P

Manufacturer:

HUAYI

File Size:

899.50 KB

Description:

N-Channel Enhancement Mode MOSFET

Applications

* Switching application
* Power management for inverter systems Ordering and Marking Information N-Channel MOSFET P P G024N03 XYMXXXXXX B G024N03 XYMXXXXXX Package Code P:TO-220FB-3L Date Code XYMXXXXXX B : TO-263-2L Note: HUAYI lead-free products contain molding compounds/die atta
