Datasheet Details
| Part number | HYG090N06LS1P |
|---|---|
| Manufacturer | HUAYI |
| File Size | 827.45 KB |
| Description | N-Channel Enhancement Mode MOSFET |
| Datasheet |
 HYG090N06LS1P-HUAYI.pdf
|
| Part number | HYG090N06LS1P |
|---|---|
| Manufacturer | HUAYI |
| File Size | 827.45 KB |
| Description | N-Channel Enhancement Mode MOSFET |
| Datasheet |
HYG090N06LS1P-HUAYI.pdf
|

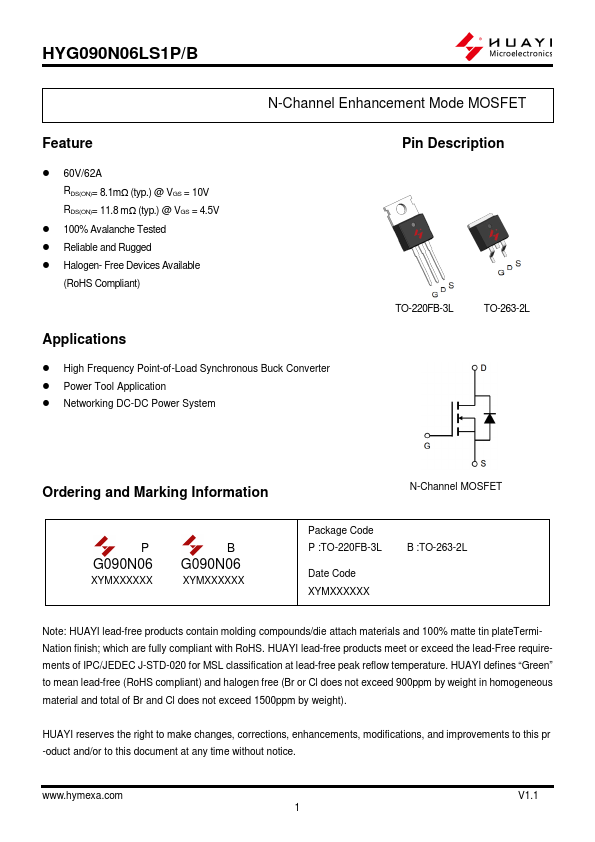

TO-220FB-3L TO-263-2L Ordering and Marking Information P G090N06 XYMXXXXXX B G090N06 XYMXXXXXX N-Channel MOSFET Package Code P :TO-220FB-3L Date Code XYMXXXXXX B :TO-263-2L Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plateTermiNation finish; which are fully compliant with RoHS.HUAYI lead-free products meet or exceed the lead-Free requirements of IPC/JEDEC J-STD-020 for MSL classification at lead-free peak reflow temperature.HUAYI de
