HYG400P10LR1P P-Channel Enhancement Mode MOSFET

HUAYI

Description

HYG400P10LR1P/B .
TO-220FB-3L TO-263-2L Applications. Portable equipment and battery powered systems. DC-DC Converters. Motor control.

📥 Download Datasheet

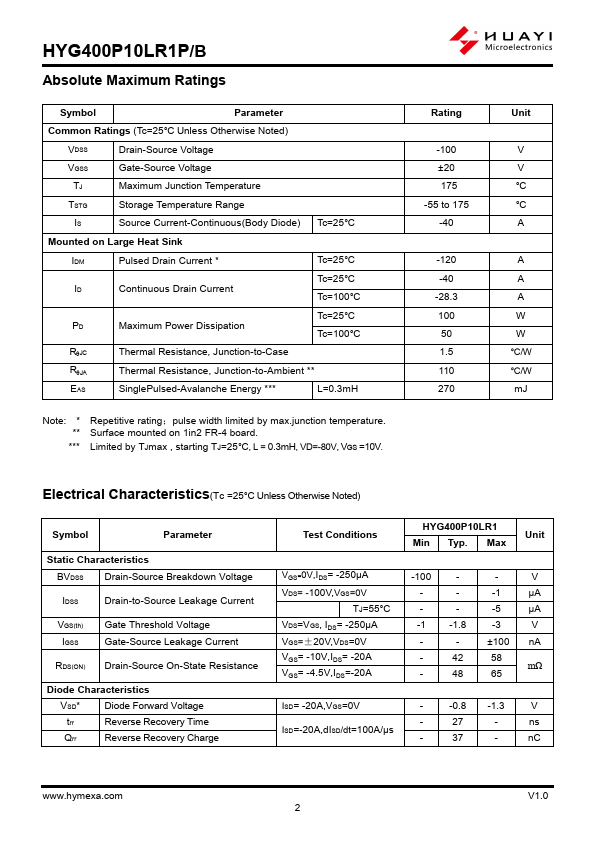

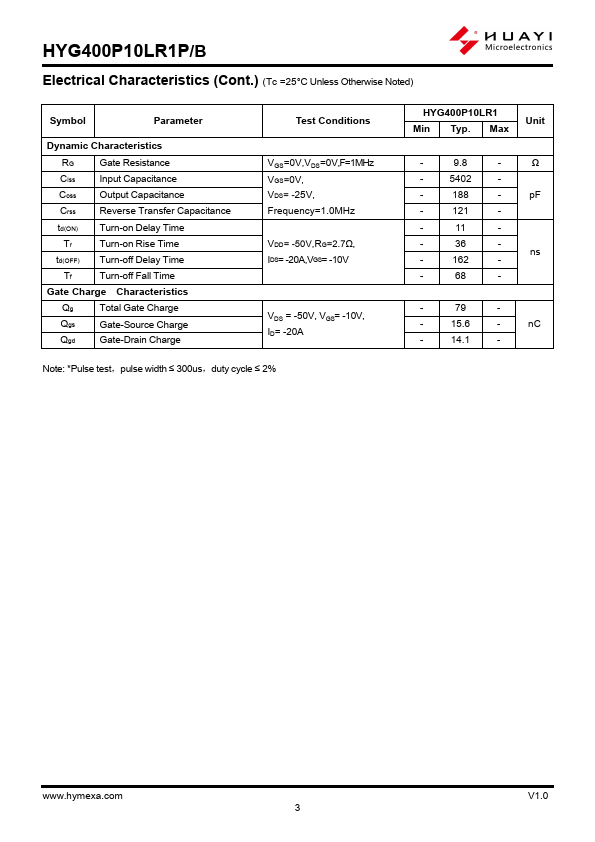

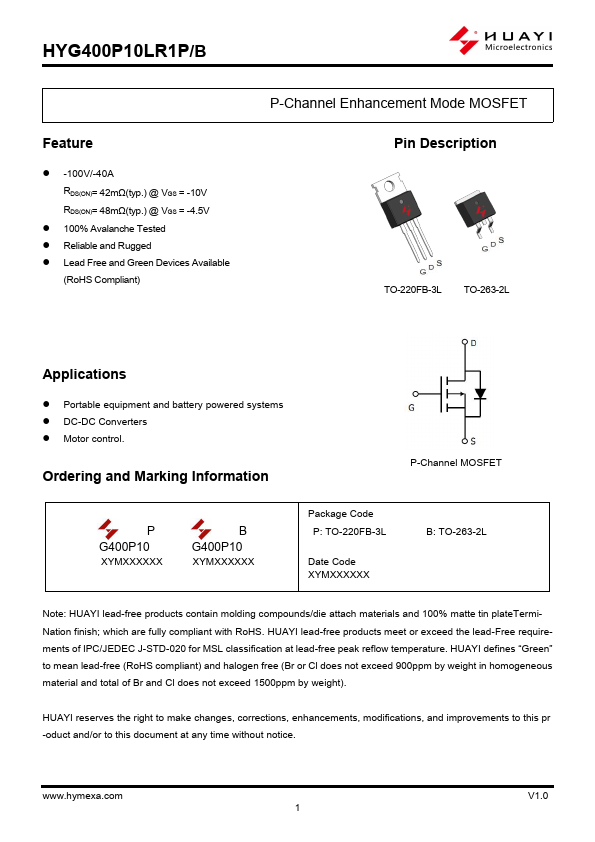

HYG400P10LR1P Datasheet Preview — Preview of HYG400P10LR1P PDF

Datasheet Specifications

Part number: HYG400P10LR1P
Manufacturer: HUAYI
File Size: 1.27 MB
Datasheet: HYG400P10LR1P-HUAYI.pdf
Description: P-Channel Enhancement Mode MOSFET

Applications

* Portable equipment and battery powered systems
* DC-DC Converters
* Motor control. Ordering and Marking Information P-Channel MOSFET P G400P10 XYMXXXXXX B G400P10 XYMXXXXXX Package Code P: TO-220FB-3L Date Code XYMXXXXXX B: TO-263-2L Note: HUAYI lead-free products contain molding
