HGTG40N60B3 Datasheet - Harris

HGTG40N60B3, UFS Series N-Channel IGBT

S E M I C O N D U C T O R HGTG40N60B3 70A, 600V, UFS Series N-Channel IGBT Package JEDEC STYLE TO-247 E C G PRELIMINARY May 1995 .
The HGTG40N60B3 is a MOS gated high voltage switching device combining the best features of MOSFETs and bipolar transistors.

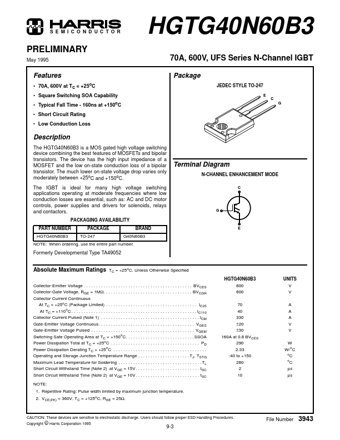

datasheet Preview Page 1 from Datasheet4u.com

HGTG40N60B3-Harris.pdf

HGTG40N60B3 Datasheet Preview — Preview of HGTG40N60B3 PDF

Datasheet Details

Part number:

HGTG40N60B3

Manufacturer:

Harris

File Size:

65.35 KB

Description:

UFS Series N-Channel IGBT

Features

* 70A, 600V at TC = +25 C
* Square Switching SOA Capability
* Typical Fall Time - 160ns at +150oC
* Short Circuit Rating

Applications

* operating at moderate frequencies where low conduction losses are essential, such as: AC and DC motor controls, power supplies and drivers for solenoids, relays and contactors. PACKAGING AVAILABILITY PART NUMBER HGTG40N60B3 PACKAGE TO-247 BRAND G40N60B3 E Terminal Diagram N-CHANNEL ENHANCEMENT MODE
