HSC3417, HSC3417_Hi - NPN EPITAXIAL PLANAR TRANSISTOR

HSC3417 Description

HI-SINCERITY MICROELECTRONICS CORP.HSC3417 NPN Epitaxial Planar Transistor Spec.No.: HE6618 Issued Date : 1994.05.12 Revised Date : 2006.07.27 Pag.

HSC3417 Applications

* High Breakdown Voltage: BVCEO=300V TO-126ML Absolute Maximum Ratings (TA=25°C)
* Maximum Temperatures Storage Temperature -50 ~ +150 °C Junction Temperature +150 °C Maximum
* Maximum Power Dissipation Total Power Dissipation (TA=25°C) 1.2 W Total Power Dissipation (TC=2

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HSC3417, HSC3417_Hi. Please refer to the document for exact specifications by model.

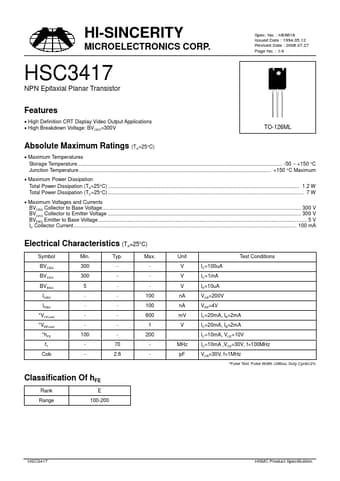

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HSC3417, HSC3417_Hi
Manufacturer
Hi-Sincerity Mocroelectronics
File Size
38.91 KB
Datasheet
HSC3417_Hi-SincerityMocroelectronics.pdf
Description
NPN EPITAXIAL PLANAR TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: HSC3417, HSC3417_Hi.
Please refer to the document for exact specifications by model.
