HSC2228Y, HSC2228Y_Hi - NPN EPITAXIAL PLANAR TRANSISTOR

HSC2228Y Description

HI-SINCERITY MICROELECTRONICS CORP.HSC2228Y NPN EPITAXIAL PLANAR TRANSISTOR Spec.No.: HE6527 Issued Date : 1993.01.15 Revised Date : 2005.02.14 Pa.
The HSC2228Y is designed for high voltage amplifier applications. Maximum Temperatures Storage Temperature.

HSC2228Y Applications

* Absolute Maximum Ratings TO-92
* Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature 150 °C Maximum
* Maximum Power Dissipation Total Power Dissipation (TA=25°C) 900 mW
* Maximum Voltages and Currents (TA=25°C) VCBO Collector to Base Voltage 16

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HSC2228Y, HSC2228Y_Hi. Please refer to the document for exact specifications by model.

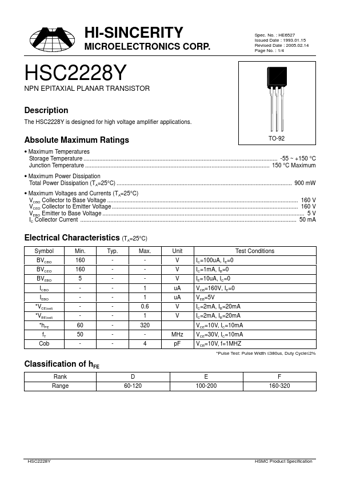

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HSC2228Y, HSC2228Y_Hi
Manufacturer
Hi-Sincerity Mocroelectronics
File Size
45.37 KB
Datasheet
HSC2228Y_Hi-SincerityMocroelectronics.pdf
Description
NPN EPITAXIAL PLANAR TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: HSC2228Y, HSC2228Y_Hi.
Please refer to the document for exact specifications by model.
