* Excellent hFE Linearity TO-92 Absolute Maximum Ratings
* Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature 150 °C Maximum
* Maximum Power Dissipation Total Power Dissipation (TA=25°C) 500 mW
* Maximum Voltages and Currents (TA=25°C) VC

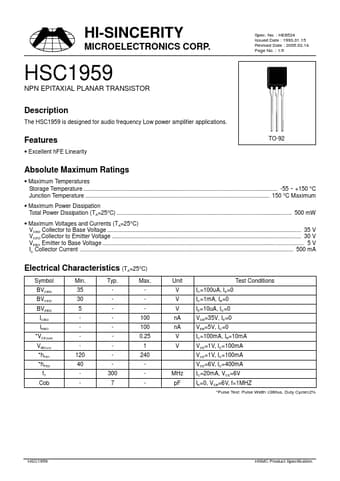

HSC1959
Hi-Sincerity Mocroelectronics
51.98 KB
Npn epitaxial planar transistor.
HI-SINCERITY
MICROELECTRONICS CORP.
HSC1959
NPN EPITAXIAL PLANAR TRANSISTOR
Spec. No. : HE6524 Issued Date : 1993.01.15 Revised Date : 2005.02.14 Pag.
