HSC3953S

NPN EPITAXIAL PLANAR TRANSISTOR

HSC3953S Features

* High fT: 500MHz

* High breakdown voltage: VCEO=120V min

* Small reverse transfer capacitance TO-92 Absolute Maximum Ratings

* Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature 150 °C Maximum

* Maximum Power Dissipation Total Pow

HSC3953S Datasheet (46.22 KB)

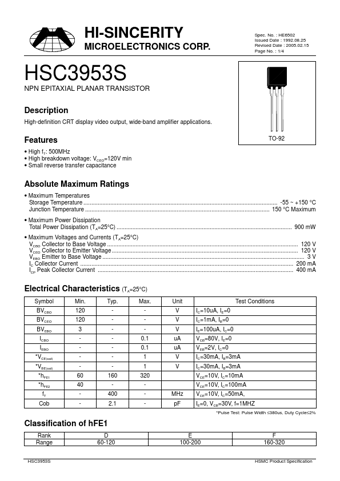

Preview of HSC3953S PDF

Datasheet Details

Part number:

HSC3953S

Manufacturer:

Hi-Sincerity Mocroelectronics

File Size:

46.22 KB

Description:

Npn epitaxial planar transistor.
HI-SINCERITY MICROELECTRONICS CORP. HSC3953S NPN EPITAXIAL PLANAR TRANSISTOR Spec. No. : HE6502 Issued Date : 1992.08.25 Revised Date : 2005.02.15 Pa.
