HSC3953, HSC3953_Hi - NPN EPITAXIAL PLANAR TRANSISTOR

HSC3953 Description

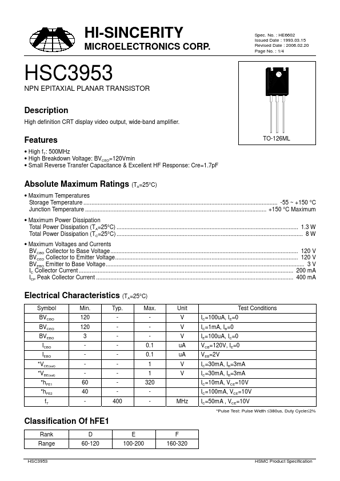

HI-SINCERITY MICROELECTRONICS CORP.HSC3953 NPN EPITAXIAL PLANAR TRANSISTOR Spec.No.: HE6602 Issued Date : 1993.03.15 Revised Date : 2006.02.20 Pag.
High definition CRT display video output, wide-band amplifier. High fT: 500MHz. High Breakdown Voltage: BVCEO=120Vmin.

HSC3953 Features

* High fT: 500MHz
* High Breakdown Voltage: BVCEO=120Vmin
* Small Reverse Transfer Capacitance & Excellent HF Response: Cre=1.7pF TO-126ML Absolute Maximum Ratings (TA=25°C)
* Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature +150 °C Maxi

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HSC3953, HSC3953_Hi. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HSC3953, HSC3953_Hi
Manufacturer
Hi-Sincerity Mocroelectronics
File Size
38.42 KB
Datasheet
HSC3953_Hi-SincerityMocroelectronics.pdf
Description
NPN EPITAXIAL PLANAR TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: HSC3953, HSC3953_Hi.
Please refer to the document for exact specifications by model.
