2SC5139 Datasheet, Transistor, Hitachi Semiconductor

2SC5139 Features

  • Transistor
  • High gain bandwidth product fT = 11 GHz typ
  • High gain, low noise figure PG = 15 dB typ, NF = 1.1 dB typ at f = 900 MHz Outline SMPAK 3 1 2 1. Emitter 2. Base 3. C

PDF File Details

Part number:

2SC5139

Manufacturer:

Hitachi Semiconductor

File Size:

57.96kb

Download:

📄 Datasheet

Description:

Npn transistor.

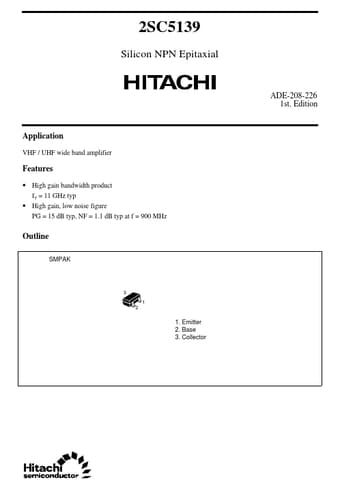

Datasheet Preview: 2SC5139 📥 Download PDF (57.96kb)
Page 2 of 2SC5139 Page 3 of 2SC5139
