2SD1470 Datasheet - Hitachi Semiconductor

2SD1470 Silicon NPN Epitaxial Planar Transistor

2SD1470 Silicon NPN Epitaxial, Darlington Application Low frequency power amplifier Outline UPAK 1 3 2 2 4 1. Base 2. Collector 3. Emitter 4. Collector (Flange) 1 3 2SD1470 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC iC(peak) PC Tj Tstg 2 1 Ratings 60 60 7 1 2 1 150 <.

2SD1470_HitachiSemiconductor.pdf

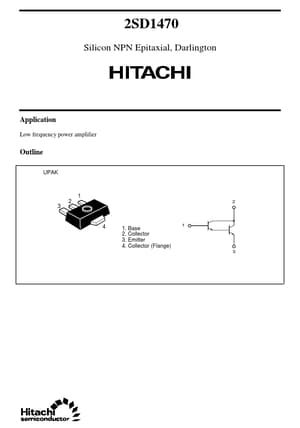

Preview of 2SD1470 PDF
2SD1470 Datasheet Preview Page 2 2SD1470 Datasheet Preview Page 3

Datasheet Details

Part number:

2SD1470

Manufacturer:

Hitachi Semiconductor

File Size:

32.16 KB

Description:

Silicon npn epitaxial planar transistor.
