2SD1472 Datasheet - Hitachi Semiconductor

2SD1472 Silicon NPN Epitaxial Planar Transistor

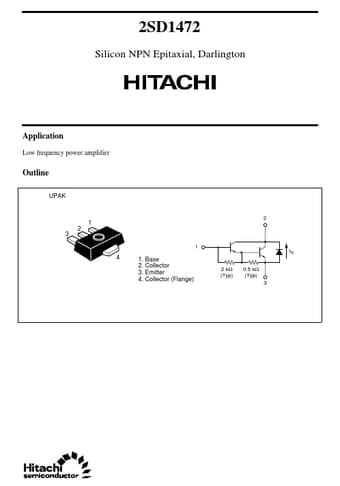

2SD1472 Silicon NPN Epitaxial, Darlington Application Low frequency power amplifier Outline UPAK 1 3 2 1 2 ID 2 kΩ (Typ) 0.5 kΩ (Typ) 3 4 1. Base 2. Collector 3. Emitter 4. Collector (Flange) 2SD1472 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature E to C diode forward current Symbol VCBO VCEO VEBO IC iC(peak.

2SD1472_HitachiSemiconductor.pdf

Preview of 2SD1472 PDF
2SD1472 Datasheet Preview Page 2 2SD1472 Datasheet Preview Page 3

Datasheet Details

Part number:

2SD1472

Manufacturer:

Hitachi Semiconductor

File Size:

33.36 KB

Description:

Silicon npn epitaxial planar transistor.
