2SD1471 Datasheet - Hitachi Semiconductor

2SD1471 Silicon NPN Planar Transistor

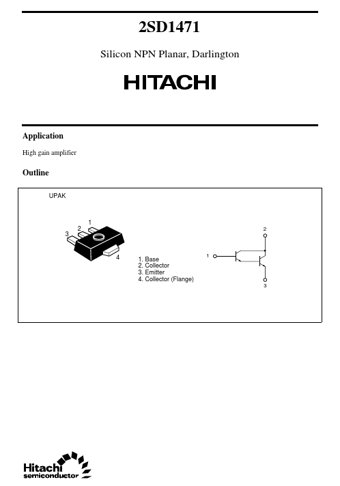

2SD1471 Silicon NPN Planar, Darlington Application High gain amplifier Outline UPAK 1 3 2 2 4 1. Base 2. Collector 3. Emitter 4. Collector (Flange) 1 3 2SD1471 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC iC(peak) PC Tj Tstg 2 1 Ratings 40 30 10 300 500 1 150 .

2SD1471_HitachiSemiconductor.pdf

Preview of 2SD1471 PDF
2SD1471 Datasheet Preview Page 2 2SD1471 Datasheet Preview Page 3

Datasheet Details

Part number:

2SD1471

Manufacturer:

Hitachi Semiconductor

File Size:

32.50 KB

Description:

Silicon npn planar transistor.
