Part number:
3SK309
Manufacturer:
Hitachi Semiconductor
File Size:
59.99 KB
Description:
Uhf rf amplifier.

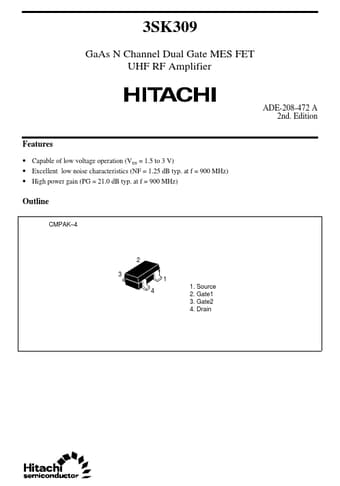

3SK309_HitachiSemiconductor.pdf
Datasheet Details
3SK309 Features
* Capable of low voltage operation (VDS = 1.5 to 3 V)
* Excellent low noise characteristics (NF = 1.25 dB typ. at f = 900 MHz)
* High power gain (PG = 21.0 dB typ. at f = 900 MHz) Outline CMPAK
* 4 2 3 4 1 1. Source 2. Gate1 3. Gate2 4. Drain 3SK309 Absolute Maximum
3SK309_HitachiSemiconductor.pdf
Datasheet Details
3SK309
Hitachi Semiconductor
59.99 KB
Uhf rf amplifier.
