3SK317 Datasheet - Hitachi Semiconductor

3SK317, UHF / VHF RF Amplifier

3SK317 Silicon N-Channel Dual Gate MOS FET UHF / VHF RF Amplifier ADE-208-778 (Z) 1st.Edition Mar.1999 .

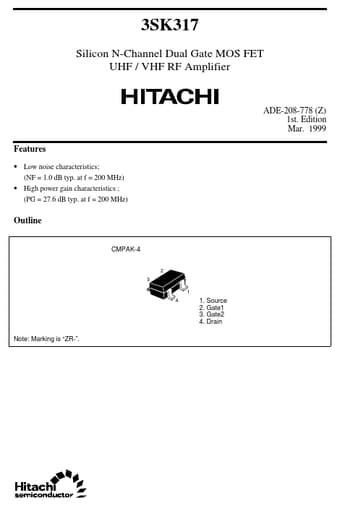

datasheet Preview Page 1 from Datasheet4u.com

3SK317_HitachiSemiconductor.pdf

3SK317 Datasheet Preview — Preview of 3SK317 PDF

Datasheet Details

Part number:

3SK317

Manufacturer:

Hitachi Semiconductor

File Size:

38.32 KB

Description:

UHF / VHF RF Amplifier

Features

* Low noise characteristics; (NF = 1.0 dB typ. at f = 200 MHz)
* High power gain characteristics ; (PG = 27.6 dB typ. at f = 200 MHz) Outline CMPAK-4 2 3 1 4 1. Source 2. Gate1 3. Gate2 4. Drain Note: Marking is “ZR-”. 3SK317 Absolute Maximum Ratings (Ta = 25°C) Item Drain to so
