3SK319

UHF RF Amplifier

3SK319 Features

* Low noise characteristics; (NF= 1.4 dB typ. at f= 900 MHz)

* Excellent cross modulation characteristics

* Capable low voltage operation; +B= 5V Outline MPAK-4 2 3 1 4 1. Source 2. Gate1 3. Gate2 4. Drain Note: Marking is “YB

* ”. 3SK319 Absolute Maximum Ratings (

3SK319 Datasheet (49.88 KB)

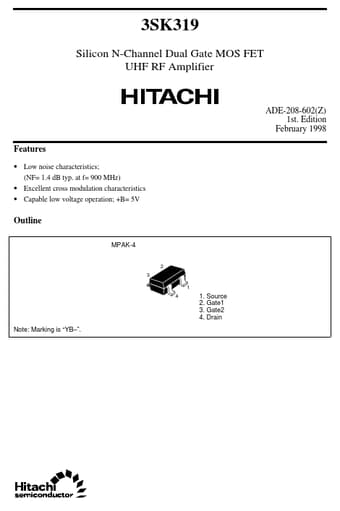

Preview of 3SK319 PDF

Datasheet Details

Part number:

3SK319

Manufacturer:

Hitachi Semiconductor

File Size:

49.88 KB

Description:

Uhf rf amplifier.
