HSC277 - Silicon Epitaxial Planar Diode for UHF/VHF tuner Band Switch

Datasheet Summary

Features

  • Low forward resistance. (rf = 0.7 max).
  • Ultra small F lat P ackage (UFP) is suitable for surface mount design. Ordering Information Type No. HSC277 Cathode Mark Laser Package Code UFP Outline Cathode mark 1 2 1. Cathode 2. Anode Absolute Maximum Ratings (Ta = 25°C) Item Reverse voltage Junction temperature Power dissipation Operation temperature Storage temperature Symbol VR Tj Pd Topr Tstg Value 35 125 150.
  • 20 to +60.
  • 45 to +125 Unit V °C mW °C °C HSC277.

📥 Download Datasheet

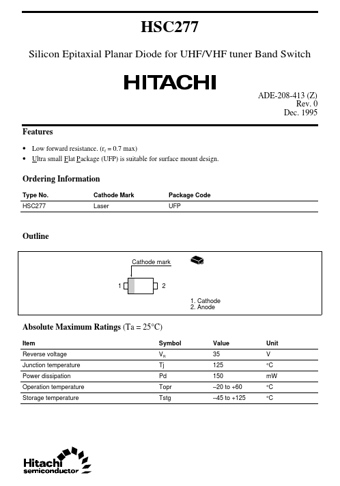

Datasheet preview – HSC277

Datasheet Details

Part number HSC277
Manufacturer Hitachi Semiconductor
File Size 26.66 KB
Description Silicon Epitaxial Planar Diode for UHF/VHF tuner Band Switch
Datasheet download datasheet HSC277 Datasheet
Additional preview pages of the HSC277 datasheet.

📁 Similar Datasheet

  • HSC200 - Aluminium Housed Power Resistors (TE)
  • HSC2228Y - NPN EPITAXIAL PLANAR TRANSISTOR (Hi-Sincerity Mocroelectronics)
  • HSC2240 - NPN EPITAXIAL PLANAR TRANSISTOR (Hi-Sincerity Mocroelectronics)
  • HSC226 - Silicon Schottky Barrier Diode (SEMTECH)
  • HSC226 - Silicon Schottky Barrier Diode (Kexin)
  • HSC226 - Silicon Schottky Barrier Diode (Renesas)
  • HSC250 - Aluminium Housed Power Resistors (TE)
  • HSC2625 - NPN EPITAXIAL PLANAR TRANSISTOR (Hi-Sincerity Mocroelectronics)
  • HSC2682 - NPN EPITAXIAL PLANAR TRANSISTOR (Hi-Sincerity Mocroelectronics)
  • HSC100 - Aluminium Housed Power Resistors (TE)
Other Datasheets by Hitachi Semiconductor
  • HSC276 - Silicon Schottky Barrier Diode for Mixer
  • HSC276A - Silicon Schottky Barrier Diode for Mixer
  • HSC278 - Silicon Schottky Barrier Diode
  • HSC226 - Silicon Schottky Barrier Diode
  • HSC119 - Silicon Epitaxial Planar Diode for High Speed Switching

Full PDF Text Transcription

Click to expand full text
HSC277 Silicon Epitaxial Planar Diode for UHF/VHF tuner Band Switch ADE-208-413 (Z) Rev. 0 Dec. 1995 Features • Low forward resistance. (rf = 0.7 max) • Ultra small F lat P ackage (UFP) is suitable for surface mount design. Ordering Information Type No. HSC277 Cathode Mark Laser Package Code UFP Outline Cathode mark 1 2 1. Cathode 2. Anode Absolute Maximum Ratings (Ta = 25°C) Item Reverse voltage Junction temperature Power dissipation Operation temperature Storage temperature Symbol VR Tj Pd Topr Tstg Value 35 125 150 –20 to +60 –45 to +125 Unit V °C mW °C °C HSC277 Electrical Characteristics (Ta = 25°C) Item Reverse voltage Reverse current Forward voltage Capacitance Forward resistance Symbol VR IR VF C rf Min 35 — — — — Typ — — — — — Max — 50 1.0 1.2 0.
