HMCAD1510 - High Speed Multi-Mode 8-Bit 30 to 500 MSPS A/D Converter

HMCAD1510 Description

HMCAD1510 v03.0711 High Speed Multi-Mode 8-Bit 30 to 500 MSPS A/D Converter .
The HMCAD1510 is a versatile high performance low power analog-to-digital converter (ADC), utilizing time-interleaving to increase sampling rate.

HMCAD1510 Features

* 8-bit High Speed Single/ Dual/ Quad ADC Single Channel Mode: FSmax = 500 MSPS Dual Channel Mode: FSmax = 250 MSPS Quad Channel Mode: FSmax = 125 MSPS
* Integrated Cross Point Switches (Mux Array)
* 1X to 50X Digital Gain. No Missing Codes up to 32X
* 1

HMCAD1510 Applications

* USB Powered Oscilloscopes
* Digital Oscilloscopes
* Satellite Receivers 0 A / D Converters - SMT Pin compatible parts

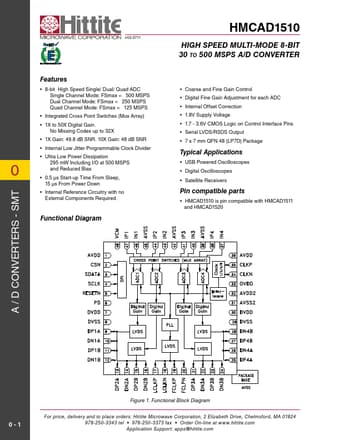

* HMCAD1510 is pin compatible with HMCAD1511 and HMCAD1520 Functional Diagram www. DataSheet. net/ Figure 1. Functional Block Diagram For pric
