HMCAD1511 - High Speed Multi-Mode 8-Bit 30 MSPS to 1 GSPS A/D Converter

HMCAD1511 Description

HMCAD1511 v03.0711 High Speed Multi-Mode 8-Bit 30 MSPS to 1 GSPS A/D Converter .
The HMCAD1511 is a versatile high performance low power analog-to-digital converter (ADC), utilizing time-interleaving to increase sampling rate.

HMCAD1511 Features

* 8-bit High Speed Single/ Dual/ Quad ADC Single Channel Mode: FSmax = 1000 MSPS Dual Channel Mode: FSmax = 500 MSPS Quad Channel Mode: FSmax = 250 MSPS
* Integrated Cross Point Switches (Mux Array)
* 1X to 50X Digital Gain No Missing Codes up to 32X
* 1

HMCAD1511 Applications

* USB Powered Oscilloscopes
* Digital Oscilloscopes
* Satellite Receivers 0 A / D Converters - SMT Pin compatible parts
* HMCAD1511 is pin compatible with HMCAD1520
* HMCAD1511 is pin compatible and can be configured to operate as HMCAD1510, with functi

📥 Download Datasheet

Preview of HMCAD1511 PDF

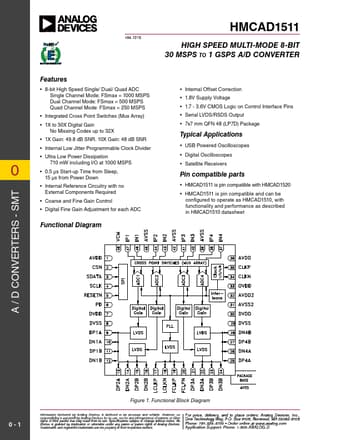

datasheet Preview Page 2 datasheet Preview Page 3
