CS3710B8 Datasheet, Mosfet, Huajing Microelectronics

CS3710B8 Features

  • Mosfet
  • Fast Switching
  • Low ON Resistance(Rdson≤23 mΩ)
  • Low Gate Charge
  • Low Reverse transfer capacitances
  • 100% Single Pulse avalanche energy T

PDF File Details

Part number:

CS3710B8

Manufacturer:

Huajing Microelectronics

File Size:

846.36kb

Download:

📄 Datasheet

Description:

Silicon n-channel power mosfet. CS3710 B8, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction l

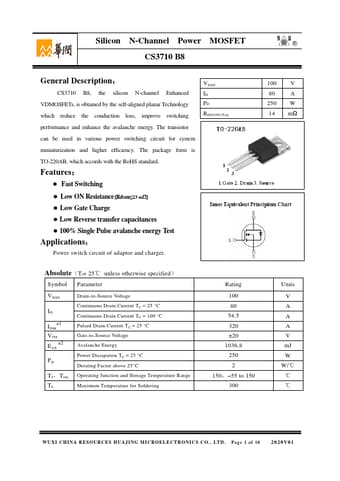

Datasheet Preview: CS3710B8 📥 Download PDF (846.36kb)
Page 2 of CS3710B8 Page 3 of CS3710B8

CS3710B8 Application

  • Applications Power switch circuit of adaptor and charger. 100 V 80 A 250 W 14 mΩ Absolute(Tj= 25℃ unless otherwise specified) Symbol Parameter
