CS7N60A4R

Silicon N-Channel Power MOSFET

Huajing Microelectronics

CS7N60A4R Features

* l Fast Switching l Low ON Resistance(Rdson≤1.3Ω) l Low Gate Charge (Typical Data:24nC) l Low Reverse transfer capacitances(Typical:5.5pF) l 100% Single Pulse avalanche energy Test Applications： Power switch circuit of adaptor and charger. Absolute（Tc= 25℃ unless otherwise specified）： Symbol Param

CS7N60A4R General Description

CS7N60 A4R, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization an.

CS7N60A4R Datasheet (285.66 KB)

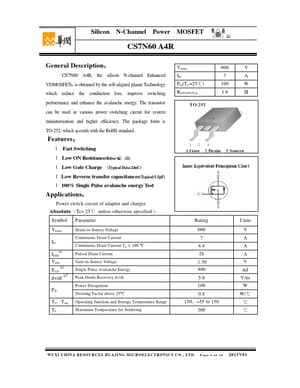

CS7N60A4R Datasheet Preview — Preview of CS7N60A4R PDF

Datasheet Details

Part number:

CS7N60A4R

Manufacturer:

Huajing Microelectronics

File Size:

285.66 KB

Description:

Silicon n-channel power mosfet.
