CS7N65A0R

Silicon N-Channel Power MOSFET

CS7N65A0R Features

* Fast Switching

* Low ON Resistance(Rdson≤1.4Ω)

* Low Gate Charge (Typical Data:24nC)

* Low Reverse transfer capacitances(Typical:5.5pF)

* 100% Single Pulse avalanche energy Test Applications： Power switch circuit of adaptor and charger. Absolute（Tc= 25℃ unless otherwise

CS7N65A0R General Description

CS7N65 A0R, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization an.

CS7N65A0R Datasheet (474.48 KB)

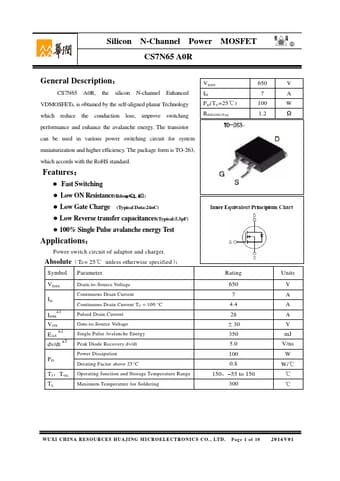

Preview of CS7N65A0R PDF

Datasheet Details

Part number:

CS7N65A0R

Manufacturer:

CR Micro

File Size:

474.48 KB

Description:

Silicon n-channel power mosfet.
