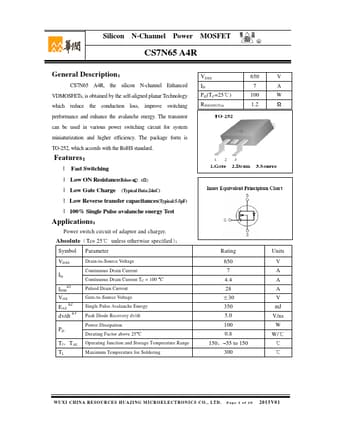

CS7N65A4R Datasheet, Mosfet, Huajing Microelectronics

CS7N65A4R Features

• Mosfet l Fast Switching l Low ON Resistance(Rdson≤1.4Ω) l Low Gate Charge (Typical Data:24nC) l Low Reverse transfer capacitances(Typical:5.5pF) l 100% Single Pulse avalanche energy Test App

PDF File Details

Part number:

CS7N65A4R

Manufacturer:

Huajing Microelectronics

File Size:

282.90kb

Download:

📄 Datasheet

Description:

Silicon n-channel power mosfet. CS7N65 A4R, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conducti

CS7N65A4R Application

• Applications Power switch circuit of adaptor and charger. Absolute（Tc= 25℃ unless otherwise specified）： Symbol Parameter VDSS ID IDMa1 VGS EAS a
