CS7N65A8HD

Silicon N-Channel Power MOSFET

Huajing Microelectronics

CS7N65A8HD Features

* l Fast Switching l ESD Improved Capability l Low Gate Charge (Typical Data:28nC) l Low Reverse transfer capacitances(Typical:17pF) l 100% Single Pulse avalanche energy Test Applications： Power switch circuit of adaptor and charger. Absolute（Tc= 25℃ unless otherwise specified）： Symbol Parameter V

CS7N65A8HD General Description

CS7N65 A8HD, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization a.

CS7N65A8HD Datasheet (692.88 KB)

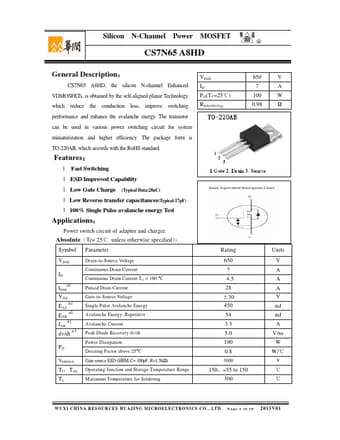

CS7N65A8HD Datasheet Preview — Preview of CS7N65A8HD PDF

Datasheet Details

Part number:

CS7N65A8HD

Manufacturer:

Huajing Microelectronics

File Size:

692.88 KB

Description:

Silicon n-channel power mosfet.
