IC-DC, IC-DC_IC - 2-CHANNEL BUCK/BOOST DC/DC CONVERTER

IC-DC Description

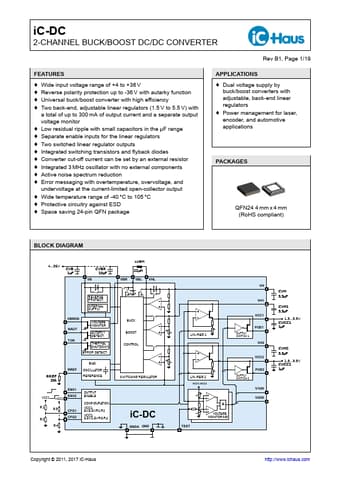

www.DataSheet.co.kr iC-DC preliminary Rev A3, Page 1/19 2-CHANNEL BUCK/BOOST DC/DC CONVERTER .
iC-DC is a monolithic switching converter with two back-end linear regulators.

IC-DC Features

* o o o o Wide input voltage range of +4 to +36 V Reverse polarity protection up to -36 V with autarky function Universal buck/boost converter with high efficiency Two back-end, adjustable linear regulators (1.5 V to 5.5 V) with a total of up to 300 mA of output current and a separate output voltage mo

IC-DC Applications

* o Dual voltage supply by buck/boost converters with adjustable, back-end linear regulators o Power management for laser, encoder, and automotive applications o o o o o o o o o o o PACKAGES QFN24 4 mm x 4 mm (RoHS compliant) BLOCK DIAGRAM LVBH 436V CVB 1μF VB CVBR 10μF VBR 22μH VBL VHL VH REVE

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IC-DC, IC-DC_IC. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IC-DC, IC-DC_IC
Manufacturer
IC-Haus
File Size
900.86 KB
Datasheet
IC-DC_IC-Haus.pdf
Description
2-CHANNEL BUCK/BOOST DC/DC CONVERTER
Note
This datasheet PDF includes multiple part numbers: IC-DC, IC-DC_IC.
Please refer to the document for exact specifications by model.
