IC-DI, IC-DI_IC - DUAL SENSOR INTERFACE

IC-DI Description

iC-DI DUAL SENSOR INTERFACE Rev C2, Page 1/15 .
iC-DI is a monolithic interface iC with two independent switching channels which enables digital sensors to drive peripheral elements, such as program.

IC-DI Features

* o Dual channel switches, configurable for high-side, low-side and push-pull operation o Switches are current limited o Push-pull operation with tristate function o Output current of up to 100 mA per channel o Parallel connection of both channels possible o Channel 1 can be inverted (antivalent output

IC-DI Applications

* o Sensor interface for light barriers and proximity switches, for example PACKAGES QFN24 4 mm x 4 mm BLOCK DIAGRAM CVH 1 uF . .50 mA LVH 22 uH VH VHL RSET 8.2 k Ω ISET VBR VCC VCC3 VCC NUVD BIAS Undervoltage NOVL Overtemp. Overload VCC3 VBO HS1 Filter and Control Logic CHANN. 1 QCFG1 QP1 QN1

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IC-DI, IC-DI_IC. Please refer to the document for exact specifications by model.

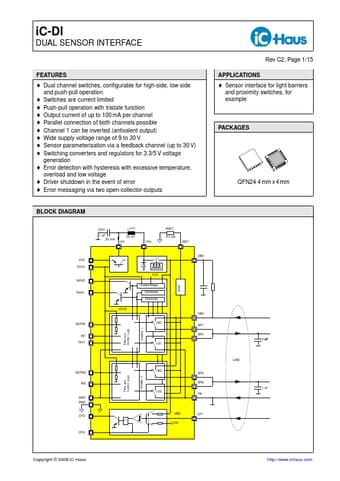

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IC-DI, IC-DI_IC
Manufacturer
IC-Haus
File Size
552.48 KB
Datasheet
IC-DI_IC-Haus.pdf
Description
DUAL SENSOR INTERFACE
Note
This datasheet PDF includes multiple part numbers: IC-DI, IC-DI_IC.
Please refer to the document for exact specifications by model.
